SELECT A DIAGRAM

02 - Main Top

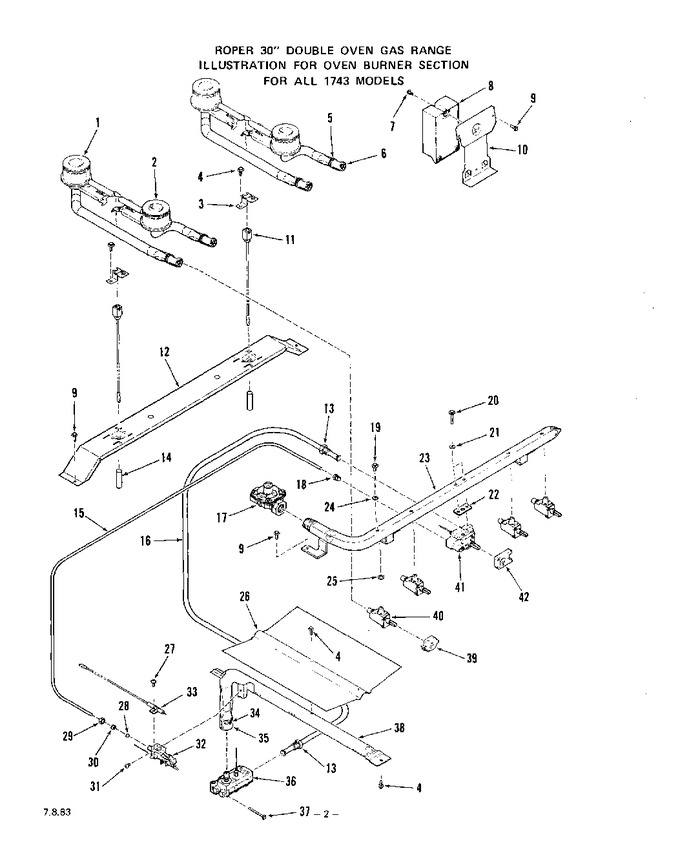

03 - Oven Burner


04 - Lower Oven Body


05 - Lower Oven Door


06 - Upper Oven Pedestal


07 - Blower


08 - Control Panel, Lit/optional


09 - Rotisserie Kit, Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310197		Rear Top Burner-lt. Or Rt. (inc`s. 5 & 6)		Appelez-nous	-
2	310196		Front Top Burner-lt. Or Rt. (inc`s. 5 & 6)		Appelez-nous	-
3	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
4	316365		Screw 10-32x7/16``		Appelez-nous	-
5	301911		Adjustment Screw-air Shutter		Appelez-nous	-
6	301910		Air Shutter		Appelez-nous	-
7	299766		Screw 6-32 X 1/2``		Appelez-nous	-
8	326136		Module - Spark Igniter		Appelez-nous	-
9	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
10	318439		Support-spark Igniter		Appelez-nous	-
11	312455		Electrode-spark Igniter (left)		Appelez-nous	-
11	312598		Electrode Spark Igniter (right)		Appelez-nous	-
12	313375		Support-top Burner		Appelez-nous	-
13	113384		Inverted Nut 3/8``		Appelez-nous	-
14	314132		Sleeve-igniter Wire (lt. Or Rt.)		Appelez-nous	-
15	322446		Tubing 3/16``		Appelez-nous	-
16	295037		Tubing 3/8``		Appelez-nous	-
17	324529		Pressure Regulator		Appelez-nous	-
18	79673		Loxit Nut 3/16``		Appelez-nous	-
19	311455		Mounting Screw (inc`s. 24)		Appelez-nous	-
20	318478		Mounting Screw (2 Req. For 41)		Appelez-nous	-
21	318658		Gasket		Appelez-nous	-
22	318657		Gasket		Appelez-nous	-
23	318481		Manifold Pipe		Appelez-nous	-
24	304241		Gasket		Appelez-nous	-
25	313563		Gasket		Appelez-nous	-
26	302729		Baffle - Oven Burner		Appelez-nous	-
27	300000		Screw 6-32 X 5/16``		Appelez-nous	-
28	318485		Orifice Cup Only (for 32)		Appelez-nous	-
29	65712		Compression Nut 3/16``		Appelez-nous	-
30	65711		Compression Ball Sleeve 3/16``				$ 6.30
31	288248		Screw 10-24x1/4``		Appelez-nous	-
32	318486		Pilot Only (inc`s. 28)		Appelez-nous	-
33	318431		Electrode - Oven Spark Igniter		Appelez-nous	-
34	239268		Adjustment Screw-air Shutter		Appelez-nous	-
35	239267		Air Shutter		Appelez-nous	-
36	318482		Control Valve (inc`s. 28 & 32)		Appelez-nous	-
37	323296		Screw 10-32 X 2``		Appelez-nous	-
38	319255		Oven Burner (inc`s. 26, 34 & 35)		Appelez-nous	-
39	312457		Switch - Valve (1 Ea. For 40)		Appelez-nous	-
40	324987		Gas Valve - 4 Req.		Appelez-nous	-
41	318477		Oven Thermostat		Appelez-nous	-
42	318432		Switch-oven Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
