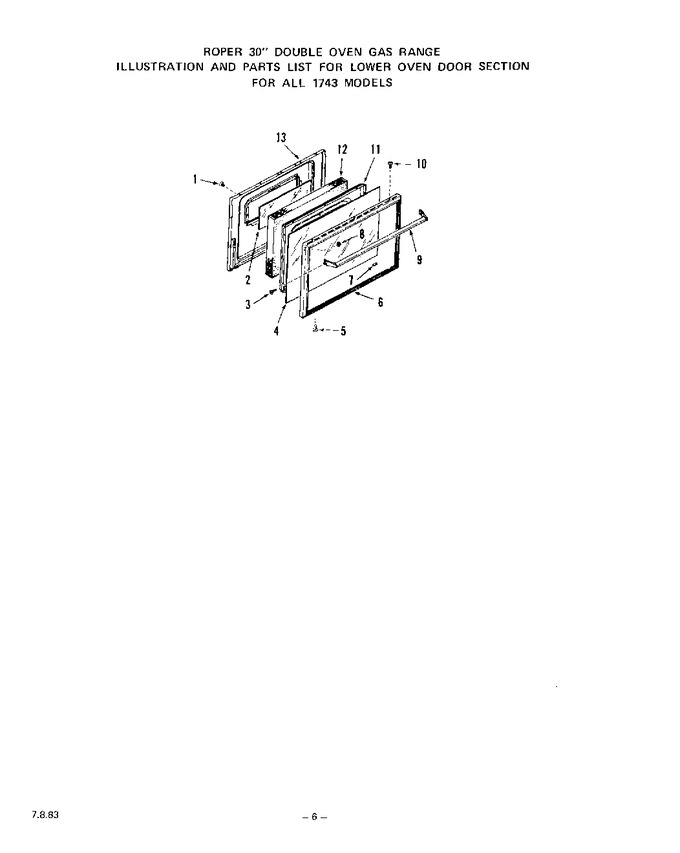

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY04100165 | Plug Button.(2 Req) (Replaces: 306667) |
|
Immediately | $ 50.62 | ||||
| 2 | 296214 | Inner Glass-oven Door |
|
- | |||||
| 3 | 319447 | Screw 8-32 X 1/2`` |
|
- | |||||
| 4 | 325465 | Outer Glass - Oven Door |
|
- | |||||
| 5 | 102376 | Screw 10-32 X 1/2`` |
|
- | |||||
| 6 | 296473 | Frame-oven Door |
|
- | |||||
| 7 | 112370 | Cushion-door Glass (5 Required) |
|
- | |||||
| 8 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 9 | 303342 | Handle-oven Door |
|
- | |||||
| 10 | 120855 | Screw 6ax3/8`` |
|
- | |||||
| 11 | 296471 | Retainer - Oven Door Insulation |
|
- | |||||
| 12 | 303556 | Insulation |
|
- | |||||
| 13 | 296206 | Lining - Oven Door |
|
- |
