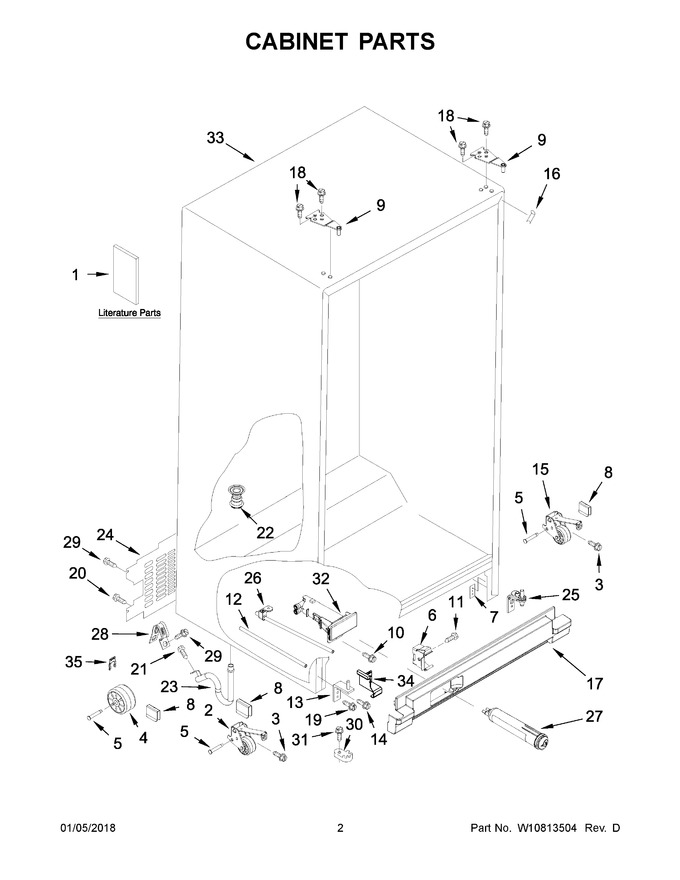

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407342		Use And Care Guide		Appelez-nous	-
2	WPW10304660		Assembly, Roller (left Hand)   (Replaces: W10304660)			Immediately	$ 63.34
3	W11544561		Screw   (Replaces: 2152958)				$ 12.65
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
5	W11594405		Axle, Roller   (Replaces: 2262072)			Immediately	$ 16.39
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 6.95
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 12.81
8	W11594405		Clip, Roller   (Replaces: W11087168)			Immediately	$ 16.39
9	W11579508		Hinge, Top (white)   (Replaces: W10704885)				$ 31.55
10	WP489500		Screw   (Replaces: 489500)				$ 7.00
11	WP489128		Screw   (Replaces: 488500)				$ 9.79
12	WPW10350006		Tube, Filter Outlet   (Replaces: W10350006)				$ 103.99
13	W10646418		Assembly, Bottom Hinge (freezer)   (Replaces: W10414753)			Immediately	$ 34.86
14	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
15	WPW10304659		Assembly, Roller (right Hand)   (Replaces: W10304659)			Immediately	$ 61.67
16	W11219639		Filler, Wrapper (white)   (Replaces: W11189128)				$ 10.18
17	W10348650		Grille (white)		Appelez-nous	-
18	WPW10308750		Screw (white)   (Replaces: W10308750)				$ 62.82
19	W10856122		Screw   (Replaces: 3400103)				$ 6.98
20	WP488488		Screw   (Replaces: 489290)				$ 6.91
21	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
22	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 45.81
23	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 31.31
24	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 122.32
25	W11049959		Assembly, Bottom Hinge (refrigerator)   (Replaces: W10846222)				$ 68.45
26	WPW10350007		Tube, Filter Inlet   (Replaces: W10350007)				$ 112.91
27	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
28	549193		Clamp, Power Cord   (Replaces: WP3196256)				$ 12.05
29	WPW10141645		Screw   (Replaces: W10141645)				$ 6.90
30	W11778262		Closer, Door (freezer)   (Replaces: W10846218)				$ 9.97
31	WP489483		Screw   (Replaces: W10142234)				$ 9.78
32	W10862456		Housing, Water Filter (white)   (Replaces: W10778316)				$ 194.31
33	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
34	W10355758		Assembly, Bracket		Appelez-nous	-
35	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 12.76
16A	W11219641		Filler, Wrapper (black)   (Replaces: W11189127)				$ 10.18
16B	W10283958		Filler, Wrapper (biscuit/bisque)				$ 21.97
16C	W11219642		Filler, Wrapper (grey)   (Replaces: W11189126)			Immediately	$ 11.02
17A	W10348651		Grille (black)				$ 59.90
17B	W10348652		Grille (biscuit/bisque)		Appelez-nous	-
17C	W10350049		Grille (grey)				$ 60.50
18A	WPW10308751		Screw (black)   (Replaces: W10308751)				$ 7.57
1A	W10713667		Tech Sheet		Appelez-nous	-
1B	W11098932		Energy Guide		Appelez-nous	-
32A	W10862460		Housing, Water Filter (black)   (Replaces: W10778315)			Immediately	$ 194.31
32B	W10861696		Housing, Water Filter (biscuit/bisque)   (Replaces: W10778314)			Immediately	$ 102.97
32C	W10862461		Housing, Water Filter (grey)   (Replaces: W10778312)			Immediately	$ 188.61
35A	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 12.77
9A	W11579508		Hinge, Top (black)   (Replaces: W10704884)				$ 31.55
9B	W11579508		Hinge, Top (biscuit/bisque)   (Replaces: W10704883)				$ 31.55
9C	W11164088		Hinge, Top (grey)   (Replaces: W10704881)				$ 59.71
