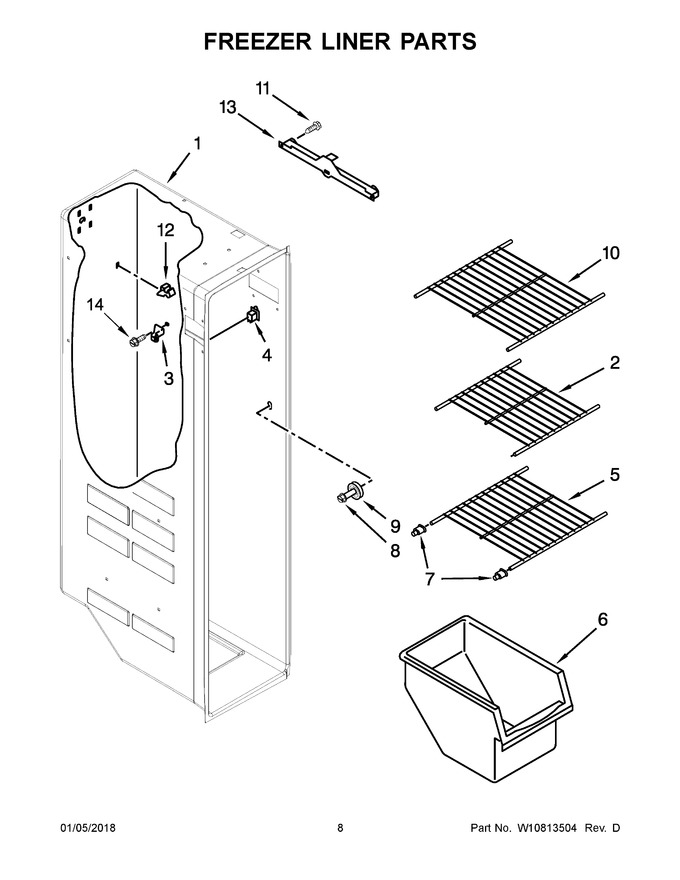

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	WPW10318947		Shelf, Wire   (Replaces: W10318947)				$ 78.70
3	2196206		Stud, Support		Appelez-nous	-
4	W11457217		Switch, Rocker Arm (freezer)   (Replaces: 1115373)				$ 34.36
5	WPW10318948		Shelf, Wire   (Replaces: W10318948)				$ 133.06
6	W11577967		Bin, Freezer   (Replaces: 2309757)				$ 82.54
7	WPW10130299		Cup, Shelf   (Replaces: W10130299)			Immediately	$ 12.60
8	W10191952		Screw				$ 5.65
9	W11527119		Assembly, Shelf Stud   (Replaces: W10173127)		Appelez-nous	-
10	WPW10318961		Shelf, Wire   (Replaces: W10318961)			Immediately	$ 69.90
11	718257		Screw   (Replaces: 489100)		Appelez-nous	-
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 9.38
13	W10845585		Slide, Ice Container (left)				$ 119.49
14	W10142289		Screw   (Replaces: 3400893)				$ 8.24
13A	W10845583		Slide, Ice Container (right)				$ 111.53
