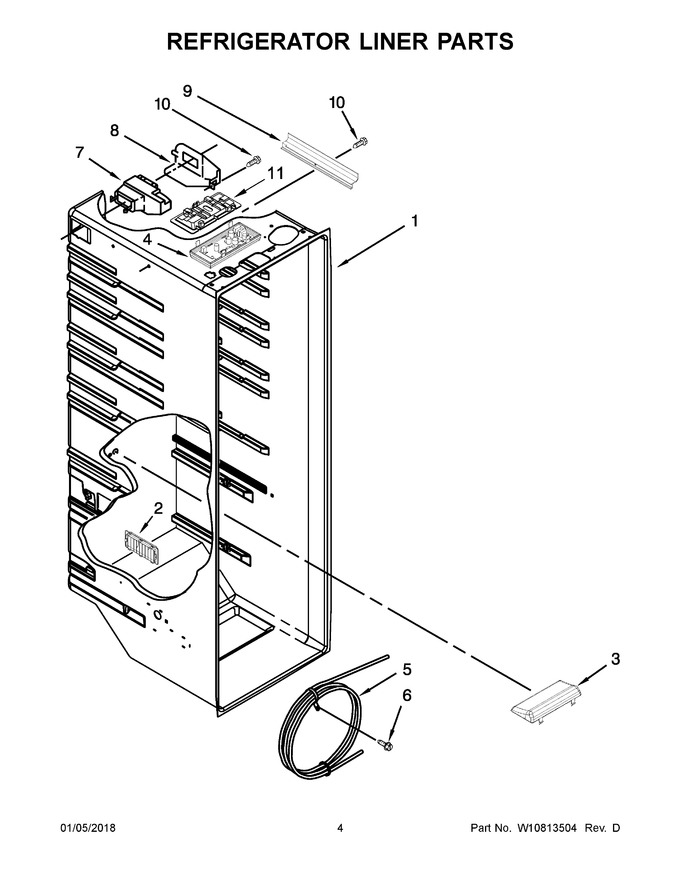

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10550195		Louver		Appelez-nous	-
3	WPW10515057		Assembly, Led Light (tapered Lens)   (Replaces: W10515057)			Immediately	$ 42.56
4	WPW10515058		Assembly, Led Light (flat Lens)   (Replaces: W10515058)			Immediately	$ 33.41
5	WPW10276792		Tubing, Water Reservoir   (Replaces: W10276792)			Immediately	$ 123.81
6	488280		Screw		Appelez-nous	-
7	WPW10151374		Assembly, Air Diffuser   (Replaces: W10151374)			Immediately	$ 89.80
8	2152019		Cover, Air Diffuser				$ 77.43
9	W10252495		Cover, Wiring		Appelez-nous	-
10	W10759522		Screw   (Replaces: 486298)				$ 6.98
11	W11416813		Cup, Led Bracket   (Replaces: W10445802)				$ 65.17

    View Diagram in Separate Window       Print Part List
