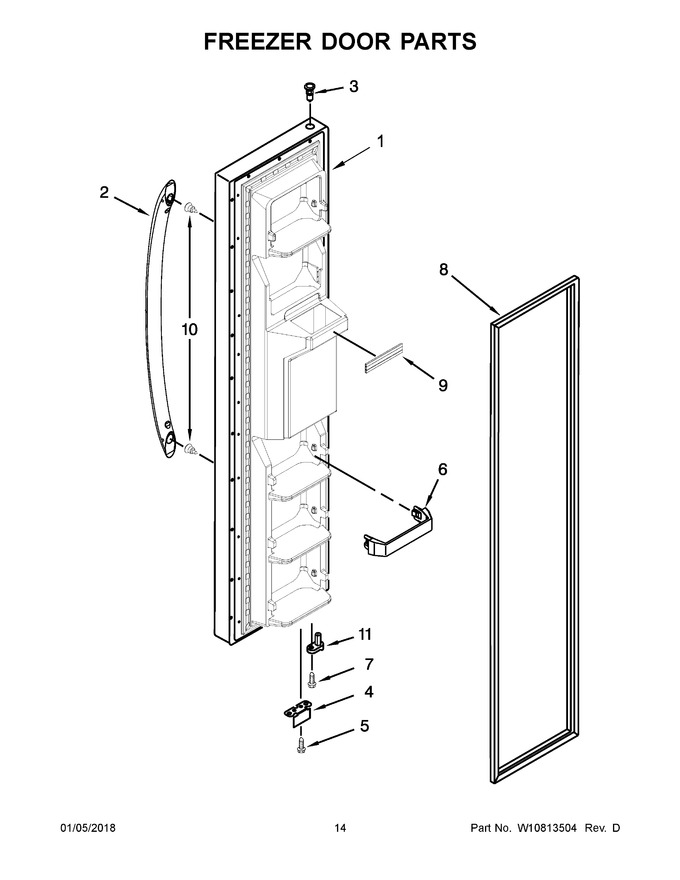

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10436758		Door, Freezer (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10848410		Handle (white)   (Replaces: W10713677)				$ 174.62
3	WP2182181		Thimble   (Replaces: 2182181)				$ 6.98
4	2306940		Bracket, Door Stop (silver)				$ 87.37
5	WP489483		Screw   (Replaces: 489420)				$ 9.78
6	WP2309718		Trivet   (Replaces: 2309718)				$ 52.70
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
8	2159074		Gasket, Door (beige)   (Replaces: 2309532)				$ 279.17
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 20.80
10	WPW10661886		Screw			Immediately	$ 10.67
11	W10846219		Thimble, Cam				$ 71.51
1A	W10763099		Door, Freezer (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1B	W10436761		Door, Freezer (includes Item 8 And Dispenser Front Parts) (biscuit/bisque)		Appelez-nous	-
1C	W10436760		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2A	W10805245		Handle (black)   (Replaces: W10713678)				$ 195.00
2B	W10713680		Handle (biscuit/bisque)		Appelez-nous	-
2C	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 161.85
8A	2159082		Gasket, Door (black)   (Replaces: 2309533)				$ 284.99
8B	W10136735		Gasket, Door (grey)   (Replaces: 2327164)			Immediately	$ 229.36
