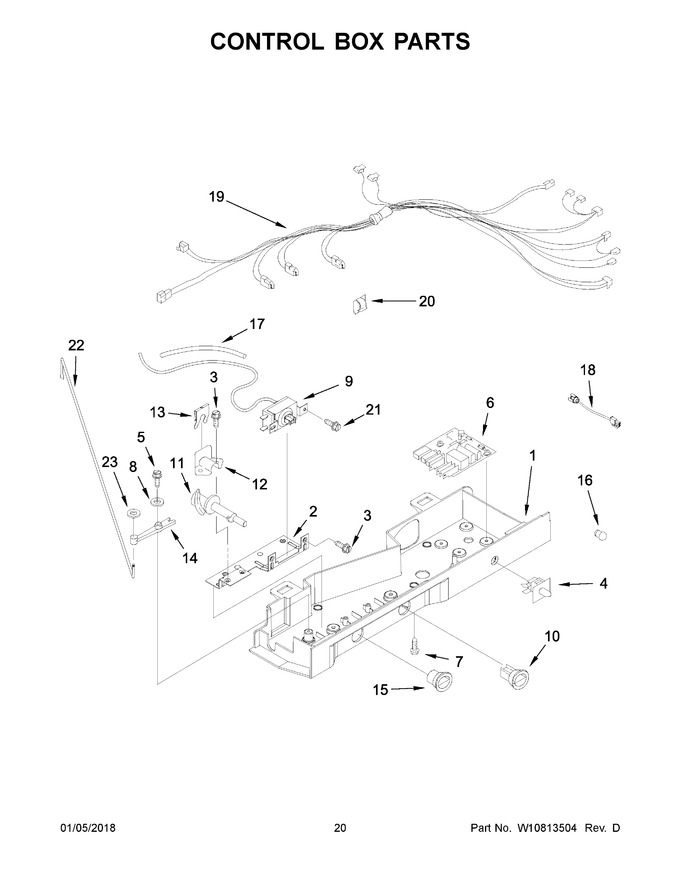

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10553058 | Box, Control |
|
- | |||||
| 2 | 2311611 | Bracket, Mounting |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | WP2149705 | Switch, Light (Replaces: 2219875) |
|
Immediately | $ 36.36 | ||||
| 5 | 627068 | Screw |
|
$ 10.91 | |||||
| 6 | WPW10366605 | Control, Adaptive Defrost (Replaces: W10366605) |
|
Immediately | $ 248.65 | ||||
| 7 | 489392 | Screw (Replaces: 489398) |
|
$ 12.02 | |||||
| 8 | 489203 | Washer (Replaces: W10657618) |
|
- | |||||
| 9 | WPW10583800 | Assembly, Thermostat (Replaces: W10583800) |
|
$ 193.34 | |||||
| 10 | W10723843 | Knob, Thermostat |
|
$ 23.93 | |||||
| 11 | WP2182195 | Assembly, Cam (Replaces: 2182195) |
|
$ 5.13 | |||||
| 12 | W10891600 | Body, Bearing |
|
- | |||||
| 13 | WP2196062 | Clip, Damper Control (Replaces: 2196062) |
|
$ 9.64 | |||||
| 14 | W10891599 | Arm, Pivot |
|
$ 18.64 | |||||
| 15 | W10723842 | Knob, Control |
|
- | |||||
| 16 | 2200096 | Lens, Light |
|
$ 64.10 | |||||
| 17 | WP2196003 | Tube, Thermostat Barrier (Replaces: 2196001) |
|
$ 7.16 | |||||
| 18 | W10853646 | Assembly, Led (Replaces: 2213462) |
|
$ 112.11 | |||||
| 19 | W10667067 | Harness, Control Box |
|
$ 107.96 | |||||
| 20 | WP1115374 | Clip, Wire (Replaces: 1115374) |
|
$ 6.98 | |||||
| 21 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 9.65 | ||||
| 22 | W10804348 | Rod, Connecting |
|
- | |||||
| 23 | W10672286 | Fastener, Push-on |
|
- |
