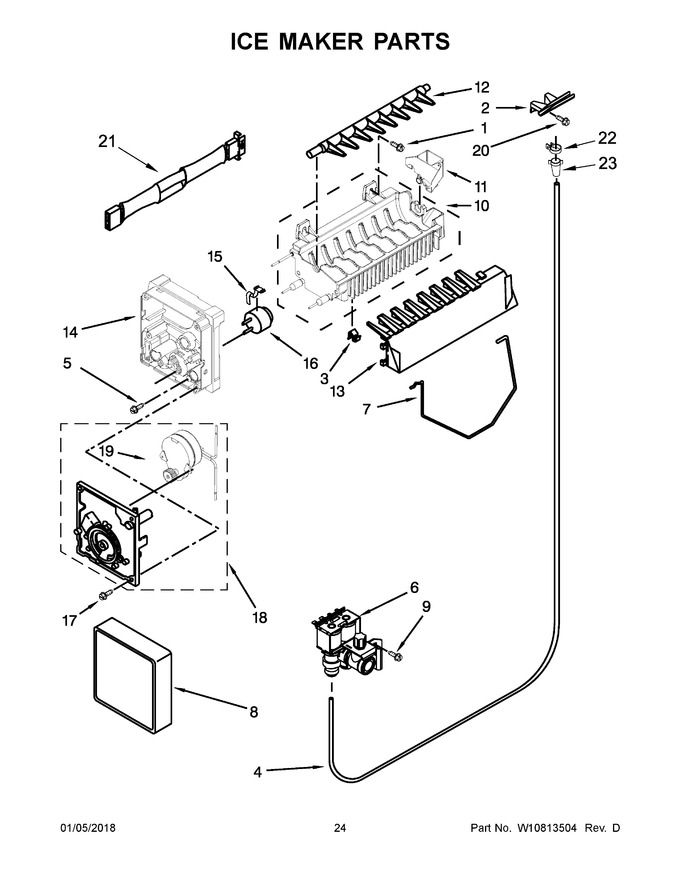

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 30.28 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 4 | W10823511 | Tube, Water (Replaces: W10357076) |
|
Immediately | $ 29.17 | ||||
| 5 | W10001280 | Screw |
|
- | |||||
| 6 | WPW10179146 | Assembly, Filter Valve (Replaces: W10179146) |
|
Immediately | $ 89.52 | ||||
| 7 | W11559683 | Arm, Shut Off (Replaces: W10512602) |
|
$ 61.03 | |||||
| 8 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 10 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 173.07 | ||||
| 11 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 19.41 | |||||
| 12 | W10318914 | Ejector |
|
$ 32.64 | |||||
| 13 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 85.22 | |||||
| 14 | WP2195914 | Support, Housing (Replaces: 2195914) |
|
$ 94.11 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 9.95 | |||||
| 16 | WP2321258 | Thermostat (also Order #542369) (Replaces: 2321258) |
|
$ 89.08 | |||||
| 17 | W10001240 | Screw |
|
$ 7.90 | |||||
| 18 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 127.48 | ||||
| 19 | N/P | Motor (not Serviced Order #18) |
|
- | |||||
| 20 | WP488729 | Screw |
|
Immediately | $ 7.01 | ||||
| 21 | W10838084 | Harness, Icemaker (Replaces: W10508644) |
|
$ 104.36 | |||||
| 22 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 56.48 | |||||
| 23 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.06 | |||||
| 100 | WPW10300022 | Complete Icemaker Assembly (Replaces: W10300022) |
|
Immediately | $ 222.74 |
