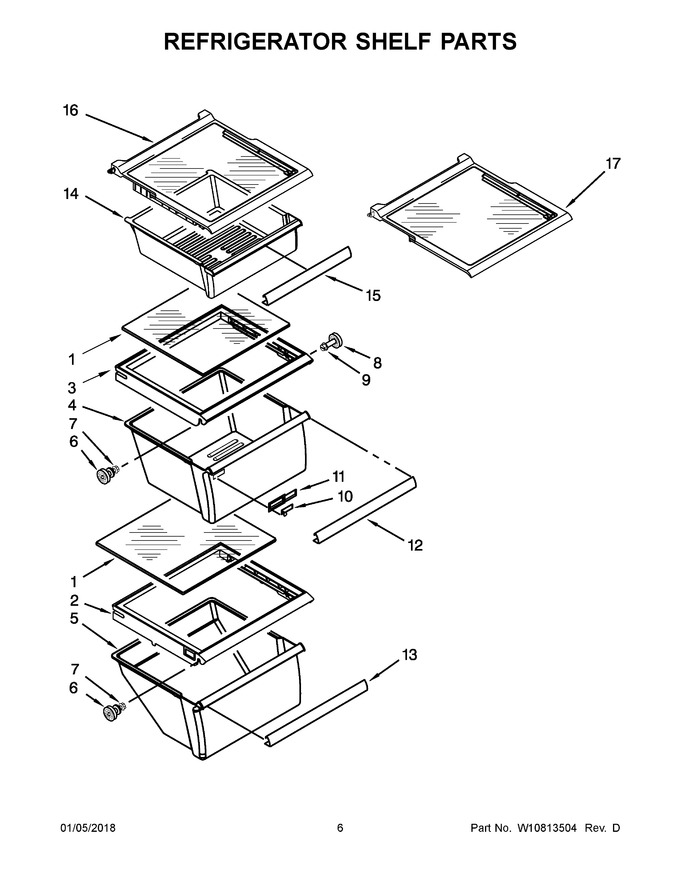

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 198.88 | |||||
| 2 | W11223835 | Cover, Crisper (Replaces: W10797580) |
|
$ 136.67 | |||||
| 3 | W10485332 | Cover, Pan |
|
$ 86.27 | |||||
| 4 | WP2188656 | Pan, Crisper (Replaces: 2188652) |
|
Immediately | $ 122.76 | ||||
| 5 | WP2188664 | Pan, Meat (Replaces: 2188654) |
|
Immediately | $ 76.77 | ||||
| 6 | W11223328 | Assembly, Shelf Stud (Replaces: W10173126) |
|
Immediately | $ 12.66 | ||||
| 7 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 7.25 | |||||
| 8 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 9 | W10191952 | Screw |
|
$ 5.65 | |||||
| 10 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 26.23 | |||||
| 11 | WP2179343 | Body, Humidity Control (Replaces: 2179343) |
|
$ 29.16 | |||||
| 12 | W10861746 | Trim, Crisper Pan (Replaces: W10630549) |
|
$ 33.04 | |||||
| 13 | W11035574 | Trim, Pan (Replaces: W10630548) |
|
$ 71.50 | |||||
| 14 | WP2309517 | Pan, Snack (Replaces: W10641229) |
|
$ 114.05 | |||||
| 15 | WP2179243 | Trim, Snack Pan (Replaces: W10630550) |
|
$ 93.99 | |||||
| 16 | WPW10276341 | Shelf, Snack Pan (Replaces: W10276341) |
|
$ 195.75 | |||||
| 17 | WPW10276348 | Assembly, Shelf (Replaces: W10276348) |
|
Immediately | $ 201.52 |
