Diagram # Part Number Description Series Availability Ships Price Add to Cart
22 10525901 Harness, Water Valve Special Order $ 8.02

32 12044011 Assy, Mc Back   (Replaces: 12041854) Appelez-nous -
42 10544301 Plug, Im Tunnel Appelez-nous -
52 12047201 Plate-water Valve Appelez-nous -
62 M0227217 Screw, Sm Appelez-nous -
92 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

421 M0227217 Screw, Sm Appelez-nous -
671 12581902 Harness,control Appelez-nous -
681 12060601 Plug, Tunnel Appelez-nous -
701 12039807 Back, Mach Comp Appelez-nous -
711 10502303 Cover, Ht Exch Appelez-nous -
731 10916502 Cord, Power Appelez-nous -
1531 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

1751 B5720303 Clip Appelez-nous -
7021 M0219704 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

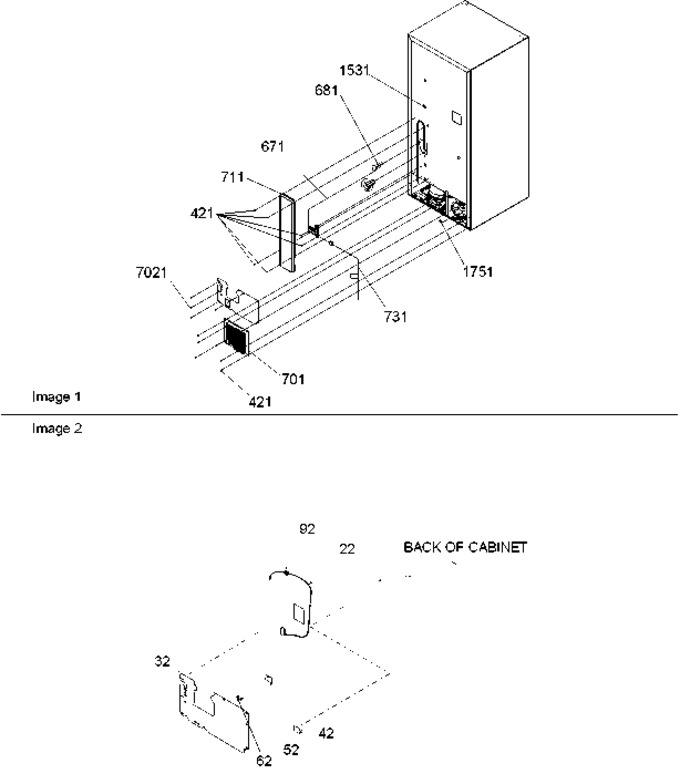

Diagram for BRD18V1E (BOM: P1326502W B)
