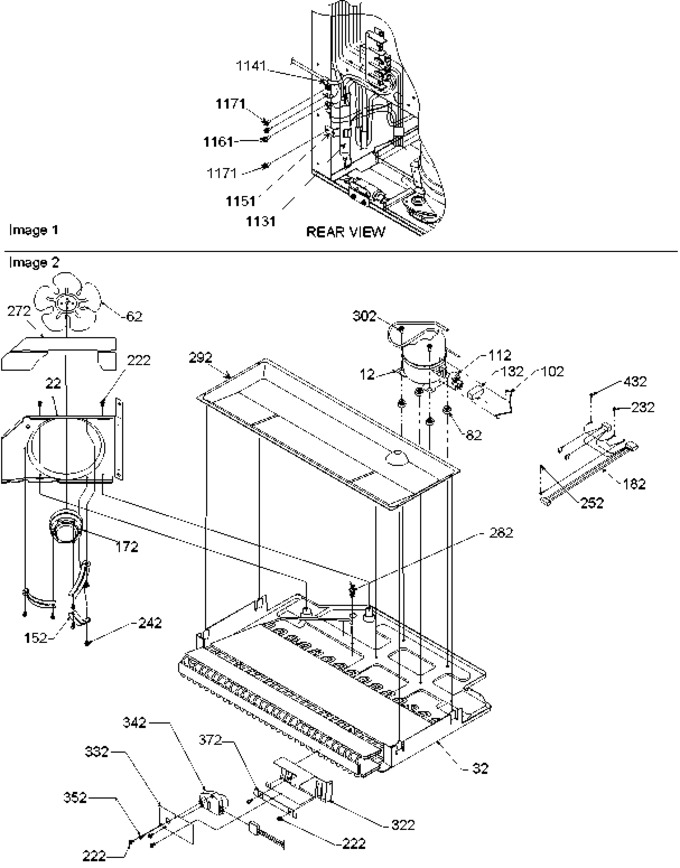

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | W10309990 | Compressor, Tc Tpe1380y (Replaces: 12049717) |
|
Immediately | $ 569.53 | ||||
| 22 | 10426911 | Cond Fan Shrd-e Ct |
|
- | |||||
| 32 | 10481224 | Assy,cond/pan-e Ct |
|
- | |||||
| 62 | B5742604 | Blade, Fan |
|
- | |||||
| 82 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
Immediately | $ 6.47 | ||||
| 102 | 12576801 | Strap, Bale |
|
- | |||||
| 112 | WP12555902 | Overload, Relay (Replaces: 12555902) |
|
Immediately | $ 124.53 | ||||
| 132 | WP65889-4 | Capacitor (Replaces: C8931612) |
|
Immediately | $ 55.03 | ||||
| 152 | 10582501 | Bracket, Cond. Motor |
|
- | |||||
| 172 | 833697 | Motor, Condenser Fan (Replaces: 10884507) |
|
Immediately | $ 79.34 | ||||
| 182 | 12556101 | Harness, Mc |
|
- | |||||
| 222 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 7.04 | ||||
| 232 | WP489399 | Screw (Replaces: M0232903) |
|
$ 6.26 | |||||
| 242 | M0223816 | Screw, Tr |
|
$ 5.27 | |||||
| 252 | M0253916 | Screw |
|
- | |||||
| 272 | 10442702 | Gasket, Cond. Fan |
|
- | |||||
| 282 | B5667304 | Wire Clip |
|
- | |||||
| 292 | 10427404 | Pan, Drain |
|
- | |||||
| 302 | M0221523 | Screw, Shldr |
|
- | |||||
| 322 | 10503201 | Brkt, Timer |
|
- | |||||
| 332 | 12515801 | Cover, Timer Brkt |
|
- | |||||
| 342 | R0131577 | Timer, Defrost (8 Hr) (Replaces: 10530703) |
|
Immediately | $ 46.12 | ||||
| 352 | M0216705 | Screw |
|
$ 5.81 | |||||
| 372 | 10542701 | Washer, Brkt |
|
- | |||||
| 432 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 1131 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 117.41 | |||||
| 1141 | M0103904 | Clamp, Speed |
|
- | |||||
| 1151 | 10547001 | Clip, Drier |
|
- | |||||
| 1161 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 6.26 | |||||
| 1171 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 7.07 |
