New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
21 12205401 Tube, Drain Appelez-nous -
31 A3076901 Plug-button Special Order $ 5.70

51 W11177593 Brake, Foot   (Replaces: 10354001) Special Order $ 10.44

61 12525403BD Foot -anti Tip Appelez-nous -
71 12525404BD Foot Anti-tip Appelez-nous -
121 10427110 Cabinet Brace-pnt Appelez-nous -
131 10450701 Roller, Rear Special Order $ 28.91

141 10450901 Axle, Roller Appelez-nous -
151 WP67006715 Screw   (Replaces: M0233847) Special Order $ 6.47

161 M0204336 Screw, Adj Roller Appelez-nous -
171 12452601Q Assy, Roller Bracket Appelez-nous -
181 M0260242 Screw, Tf Appelez-nous -
201 10663001 Insul., R. Foot Appelez-nous -
251 M0227217 Screw, Sm Appelez-nous -
261 M0102303 Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

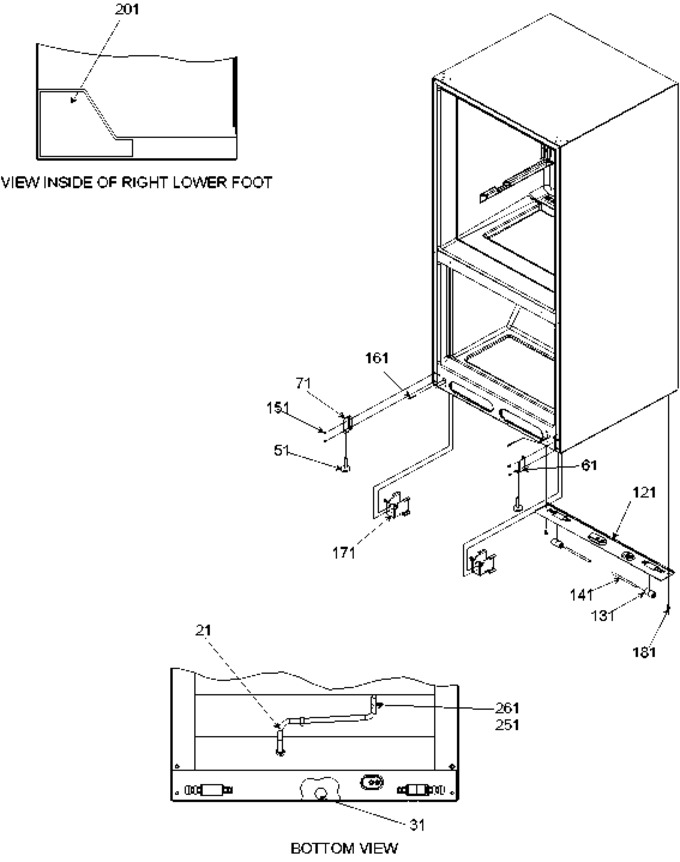

Diagram for BRD18V1E (BOM: P1326502W B)
