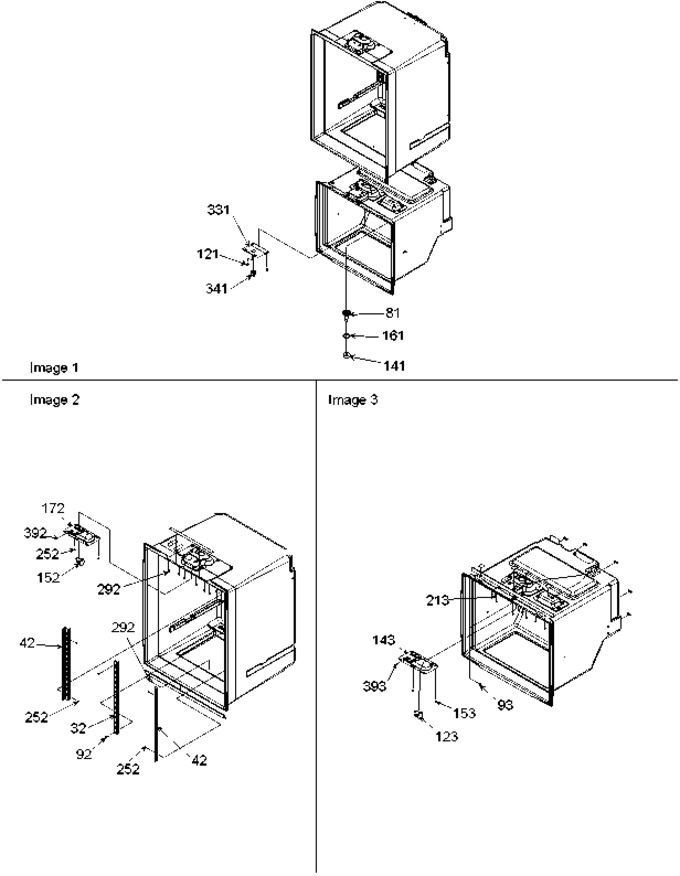

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	12614202		Ladder,powder Ct		Appelez-nous	-
42	12614201		Ladder, Sides		Appelez-nous	-
81	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 44.15
92	W10709795		Screw   (Replaces: M0231425)				$ 11.82
93	12991101		Screw, Sm   (Replaces: M0210816)				$ 11.55
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.26
123	D7714408		Socket, Light				$ 68.10
141	B8381502		Gasket, Drain Tube		Appelez-nous	-
143	12427502		Housing, Light		Appelez-nous	-
152	D7714408		Socket, Light				$ 68.10
153	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.26
161	WPM0500703		Seal, O Ring   (Replaces: M0501601)				$ 9.83
172	12427502		Housing, Light		Appelez-nous	-
213	M0581001		Grommet, Screw		Appelez-nous	-
252	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.26
292	M0581001		Grommet, Screw		Appelez-nous	-
331	D7297604		Cover, Light Sw		Appelez-nous	-
341	W11396033		Switch, Light/intrlk   (Replaces: 12466101)			Immediately	$ 33.57
392	B5733302		Clip, Ground		Appelez-nous	-
393	B5733302		Clip, Ground		Appelez-nous	-
