Diagram for 11 - Refrig. Feature, Shelf, & Deli Assy
11 - Refrig. Feature, Shelf, & Deli Assy


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 D7795826 Knob, Control (wht) Appelez-nous -
12 12325201 Glide, L. Side Shelf Appelez-nous -
13 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 9.25

14 10436601 Cover, Shelf Rail L.h. Appelez-nous -
21 12219302 Cover, Damper Appelez-nous -
22 12325202 Glide, R. Side Shelf Appelez-nous -
24 10436602 Cover, Shelf Rail Appelez-nous -
32 10562503 Ext, Gl Shelf Side Appelez-nous -
33 10502203 Ext, Mk Rear Appelez-nous -
34 10562503 Ext, Gl Shelf Side Appelez-nous -
42 12204806 Shelf, Glass Appelez-nous -
43 10436823 Ext, Shelf Front Appelez-nous -
44 12204806 Shelf, Glass Appelez-nous -
52 12120205 Frame,spl Svr Glide Appelez-nous -
54 10681401 Rail, Painted Appelez-nous -
62 12120304 Ext, Gl Shelf Rear Appelez-nous -
63 10681401 Rail, Painted Appelez-nous -
64 10436906 Extr, Gl Shelf Rear Appelez-nous -
72 10436816 Ext-gl Shlf Front Appelez-nous -
74 10436816 Ext-gl Shlf Front Appelez-nous -
82 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 6.98

84 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 6.98

92 10875101 Stop, Shelf Appelez-nous -
101 12204902Q Assy, Glide Shelf Appelez-nous -
113 10485501 Glide, R. Mk Appelez-nous -
121 10480722Q Assy, Shelf (spl Prf) Appelez-nous -
123 10485601 Glide, L. Mk Appelez-nous -
133 10417119 Pan,meatkeeper Appelez-nous -
143 12204806 Shelf, Glass Appelez-nous -
153 10562503 Ext, Gl Shelf Side Appelez-nous -
173 10481001 Roller, Pan Special Order $ 10.99

203 10502504 Ext, Mk Band Appelez-nous -
233 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

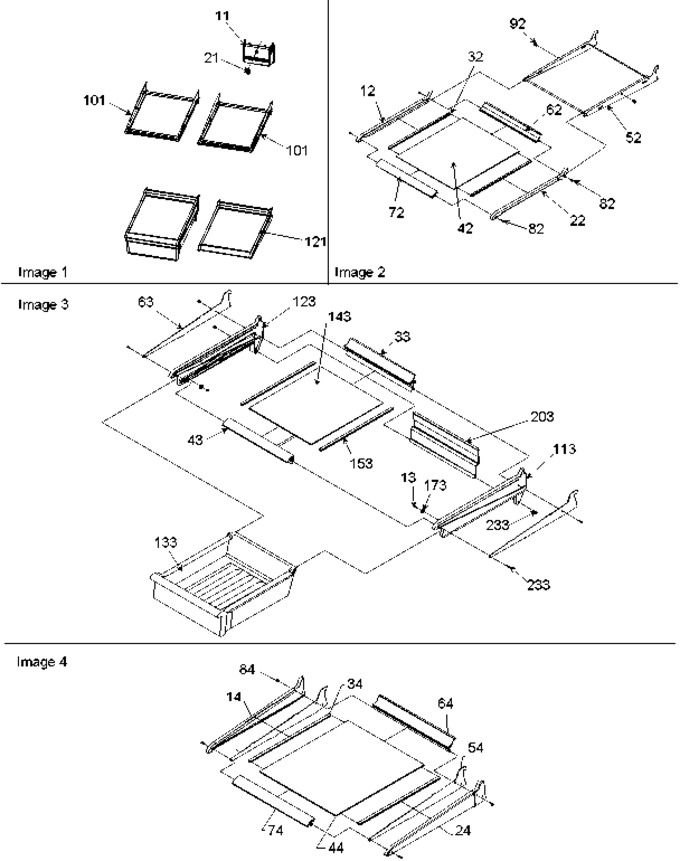

Diagram for BRD18V1E (BOM: P1326502W B)
