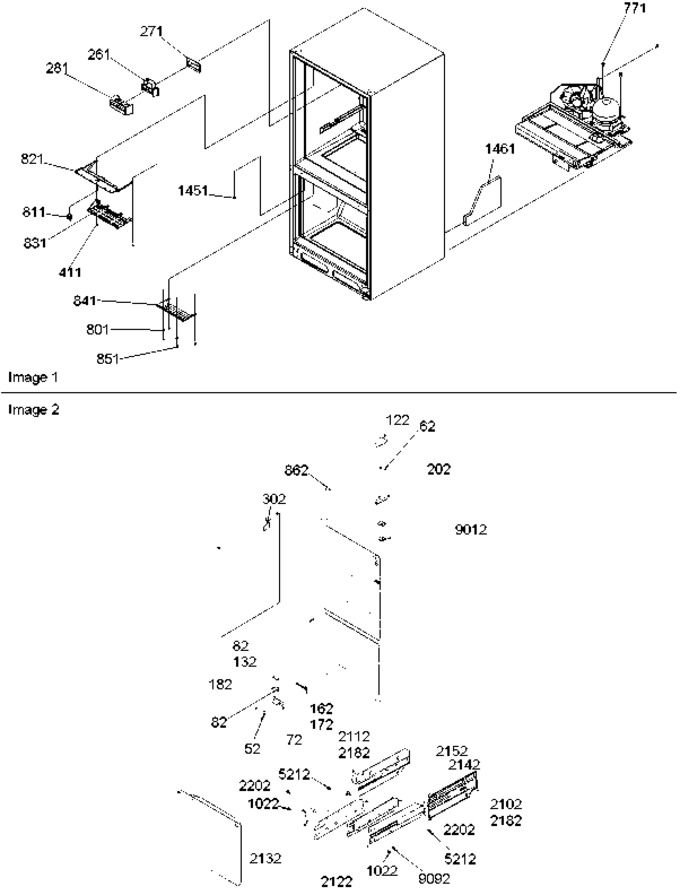

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 52 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 12.62 | |||||
| 62 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 8.44 | |||||
| 72 | 12446514 | Hinge, Ctr- E Ct (blk) |
|
- | |||||
| 82 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 21.99 | ||||
| 122 | 12076301 | Cover, Hinge (blk) |
|
- | |||||
| 132 | M0274063 | Shim, Non Metal (blk) |
|
- | |||||
| 162 | 10562211 | Shim, Center Hinge |
|
- | |||||
| 172 | 10562203 | Shim, Center Hinge |
|
- | |||||
| 182 | 12002311 | Pin, Hinge (ctr) (Replaces: 10351003) |
|
$ 7.07 | |||||
| 202 | 12077316 | Hinge, Top-e Ct |
|
- | |||||
| 261 | R0161050 | Damper Control Kit |
|
$ 120.41 | |||||
| 271 | B8345401 | Gasket, Damper |
|
- | |||||
| 281 | 12205501 | Insul, Damper |
|
- | |||||
| 302 | Y12528501 | Nameplate (amana Plus) |
|
Immediately | $ 53.78 | ||||
| 411 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.26 | ||||
| 771 | M0221523 | Screw, Shldr |
|
- | |||||
| 801 | M0270538 | Washer |
|
- | |||||
| 811 | W11384469 | Switch, Light (Replaces: C3680310) |
|
Immediately | $ 33.51 | ||||
| 821 | 12056201 | Shield, Ref Light Sw |
|
- | |||||
| 831 | 12056301 | Cover, Ref Light |
|
- | |||||
| 841 | 10493302 | Cover, Frz Light |
|
- | |||||
| 851 | M0238846 | Screw-sm |
|
- | |||||
| 862 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 6.98 | ||||
| 1022 | 67006425 | Screw (Replaces: M0239229) |
|
Immediately | $ 6.26 | ||||
| 1451 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 1461 | 10663002 | Insul., L. Foot |
|
- | |||||
| 2102 | 12564601 | Adapter,r.h. Side |
|
- | |||||
| 2112 | 12564602 | Adapter,l.h. Side |
|
- | |||||
| 2122 | 12564501WD | Plate,door Supp-e Ct |
|
- | |||||
| 2132 | 12564502WD | Plate,door Supp-e Ct |
|
- | |||||
| 2142 | 12564101 | Support,r.h. Basket |
|
- | |||||
| 2152 | 12564102 | Support,l.h. Basket |
|
- | |||||
| 2182 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 7.17 | ||||
| 2202 | 12525501 | Slide, Drawer |
|
- | |||||
| 5212 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 7.04 | ||||
| 9012 | 12545201 | Shim, Posi Pin |
|
- | |||||
| 9092 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 |
