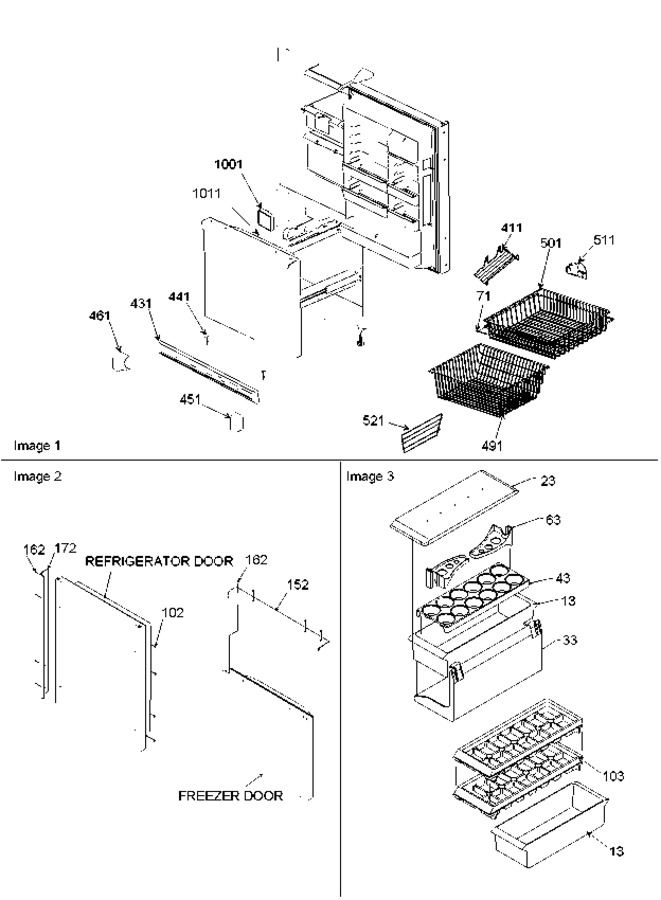

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 23 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 33 | 10448903 | Rack, Bottle |
|
- | |||||
| 43 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 63 | 12103905 | Snugger, Door Shelf |
|
- | |||||
| 71 | 10508506 | Handle, Basket/shelf |
|
- | |||||
| 102 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) |
|
Immediately | $ 6.98 | ||||
| 103 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 41.00 | ||||
| 152 | 12572604B | Handle,extr Fz(black) |
|
- | |||||
| 162 | M0239654 | Screw, E Sm (blk) |
|
- | |||||
| 172 | 12572603B | Handle,extr Ref(black) |
|
- | |||||
| 411 | 12228201 | Rack, Ice Tray |
|
- | |||||
| 431 | 10474901 | Grille, Toe (18) |
|
- | |||||
| 441 | 12582301 | Clip,toe Grille |
|
- | |||||
| 451 | 12596701B | Cover,anti Tip-r.h.(black) |
|
- | |||||
| 461 | 12596702B | Cover,anti Tip-l.h.(black) |
|
- | |||||
| 491 | 12564302 | Basket,30 Fz Lwr |
|
- | |||||
| 501 | 12564402 | Basket,30 Fz Uppr |
|
- | |||||
| 511 | 12351101 | Shield, Ice |
|
- | |||||
| 521 | 12525301 | Divider,fz Basket |
|
- | |||||
| 1001 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 1011 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.26 |
