SELECT A DIAGRAM

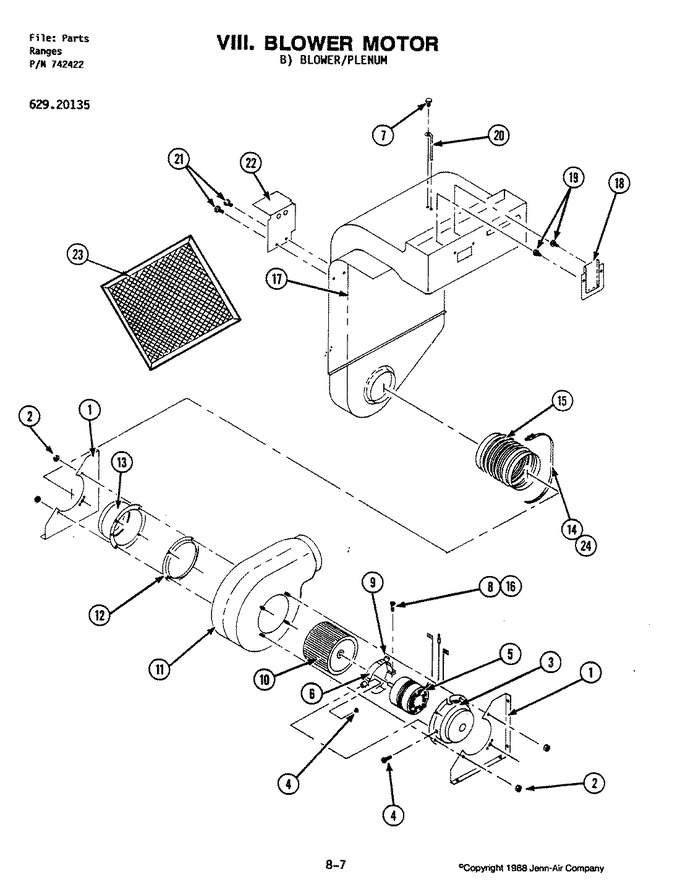

01 - Blower Motor


02 - Blower Motor


03 - Body


04 - Control Panel


05 - Door


06 - Internal Controls


07 - Oven


08 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3801F631-51		Bracket, Mount   (Replaces: Y702294)				$ 70.98
2	WPY707702		Locknut   (Replaces: Y707702)			Immediately	$ 6.26
3	Y702734		Cover, Motor		Appelez-nous	-
4	707407		Screw				$ 6.42
5	00687249		Motor   (Replaces: 702650)				$ 186.62
5	Y715957		Foam, Urethane		Appelez-nous	-
6	Y707393		Band, Motor		Appelez-nous	-
7	WP90767		Screw   (Replaces: 715773)			Immediately	$ 7.04
8	Y707402		Screw		Appelez-nous	-
9	WP71003558		Isolator   (Replaces: Y708926)				$ 11.47
10	WPY707985		Wheel, Blower   (Replaces: Y707985)			Immediately	$ 145.55
11	712008		Scroll, Blower Assy.		Appelez-nous	-
12	Y702295		Ring, Inlet		Appelez-nous	-
13	Y702296		Adapter, Restrictor Ring		Appelez-nous	-
14	Y702331		Clamp, Hose		Appelez-nous	-
15	Y702326		Duct, Flexible				$ 77.46
16	707161		Nut		Appelez-nous	-
17	712025		Plenum, Upper		Appelez-nous	-
18	Y702475		Cover, Vent		Appelez-nous	-
19	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
20	Y702656		Stop, Filter		Appelez-nous	-
21	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
22	DE81-08871A		Enclosure, Side (right)   (Replaces: 702183)				$ 526.73
23	702735		Cord, Receptacle Motor		Appelez-nous	-
23	Y702733		Cord, Power (motor)		Appelez-nous	-
23	Y702696		Strain, Relief		Appelez-nous	-
23	WP71002111		Filter, Grease   (Replaces: Y715290)			Immediately	$ 33.49
24	WP67006908		Screw   (Replaces: 712092)			Immediately	$ 7.16
