SELECT A DIAGRAM

01 - Blower Motor


02 - Blower Motor


03 - Body


04 - Control Panel


05 - Door

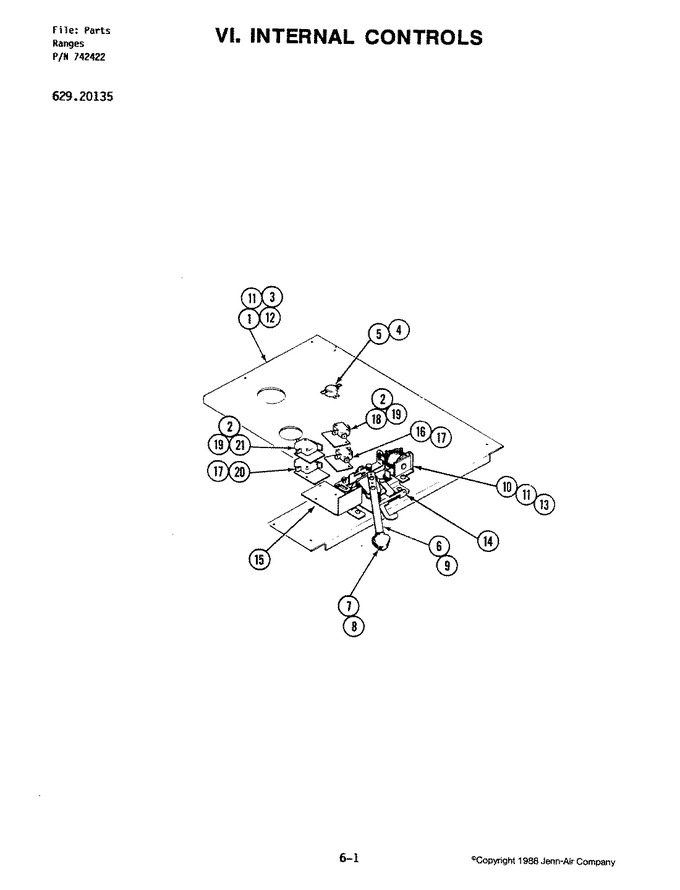

06 - Internal Controls


07 - Oven


08 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704154		Panel, Top		Appelez-nous	-
2	702807		Screw		Appelez-nous	-
3	702746		Tie, Mount Cable		Appelez-nous	-
4	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
5	WP7403P899-60		Switch, Hi-limit   (Replaces: Y702548)			Immediately	$ 181.29
6	Y703848		Lever, Latch (wht)		Appelez-nous	-
7	701670		Knob, Lever		Appelez-nous	-
8	701671		Spring, Knob		Appelez-nous	-
9	707407		Screw				$ 6.42
10	Y702526		Solenoid		Appelez-nous	-
11	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
12	702697		Bracket,stiffener		Appelez-nous	-
13	Y701686		Pin, Cotter		Appelez-nous	-
14	Y703357		Latch Assy.		Appelez-nous	-
15	701706		Shield, Switch		Appelez-nous	-
16	Y702360		Switch, Solenoid		Appelez-nous	-
17	Y702350		Insulator		Appelez-nous	-
18	Y703732		Switch, Latch		Appelez-nous	-
19	703264		Insulator		Appelez-nous	-
20	Y704752		Switch, Rear (bottom)		Appelez-nous	-
21	702806		Switch, Door		Appelez-nous	-
21	703750		Wire, Grey		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
