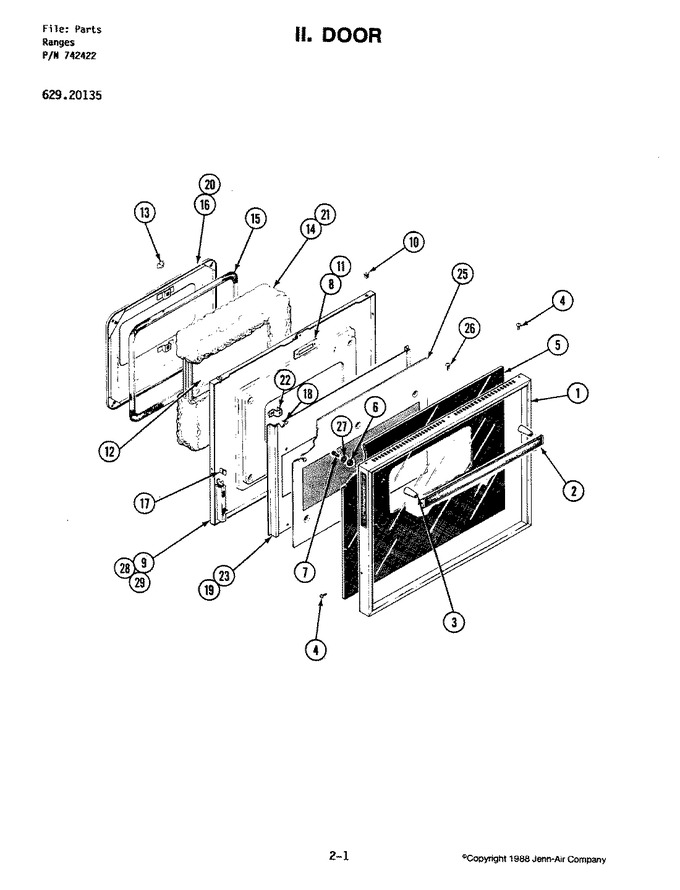

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704229		Frame, (blk)		Appelez-nous	-
2	704836		Handle		Appelez-nous	-
3	701832		Post, Mounting		Appelez-nous	-
4	W11233072		Screw (blk)   (Replaces: Y704237)			Immediately	$ 12.62
5	705073		Glass, Screened		Appelez-nous	-
6	715939		Bushing		Appelez-nous	-
7	Y703533		Screw		Appelez-nous	-
8	Y712010		Plate, Latch (upper)		Appelez-nous	-
9	712189		Liner, Oven Door Weld		Appelez-nous	-
10	702657		Nut, Push-in		Appelez-nous	-
11	WP210720		Rivet   (Replaces: 701662)				$ 12.14
12	701648		Window Pack		Appelez-nous	-
13	Y700503		Clip, Retainer		Appelez-nous	-
14	702293		Insulation		Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)			Immediately	$ 172.53
16	712011		Plug, Oven Door Weld		Appelez-nous	-
17	Y700834		Clip		Appelez-nous	-
18	703958		Screw		Appelez-nous	-
19	Y704223		Bumper, Button		Appelez-nous	-
20	701660		Insulation, Top		Appelez-nous	-
21	702292		Insulation, Bottom		Appelez-nous	-
22	701652		Bracket, Stand-off		Appelez-nous	-
23	703782		Baffle		Appelez-nous	-
24	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
25	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)				$ 54.82
26	W11233072		Screw   (Replaces: Y708733)			Immediately	$ 12.62
27	Y700446		Washer				$ 5.27
28	715870		Screw		Appelez-nous	-
29	Y703449		Washer		Appelez-nous	-
