01 - Blower Motor


02 - Blower Motor


03 - Body


04 - Control Panel


05 - Door


06 - Internal Controls

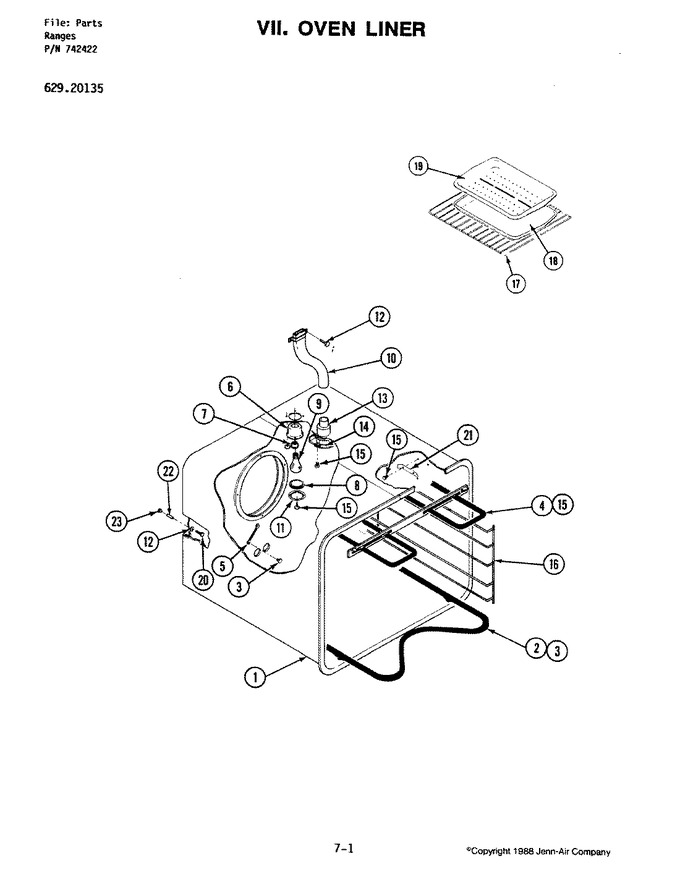

07 - Oven


08 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712374		Weld, Oven Assembly		Appelez-nous	-
2	712247		Element, Bake (208v)		Appelez-nous	-
2	WPY04100019		Element, Bake (240v)   (Replaces: Y702550)				$ 116.29
3	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
4	WPY04100015		Element, Broil 240v   (Replaces: Y702551)				$ 137.82
4	712125		Element, Broil 208v		Appelez-nous	-
5	702643		Wire, Ground		Appelez-nous	-
6	704142		Receptacle, Holder		Appelez-nous	-
7	Y704145		Receptacle, Snap-in		Appelez-nous	-
8	Y704143		Lens, Light		Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)			Immediately	$ 16.80
10	702290		Tube, Vent		Appelez-nous	-
11	Y704144		Retainer, Lens		Appelez-nous	-
12	701736		Washer		Appelez-nous	-
13	701738		Tube, Vent		Appelez-nous	-
14	Y702632		Shield, Vent		Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
16	702701		Support, Rack		Appelez-nous	-
17	Y702339		Rack, Oven		Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 703164)			Immediately	$ 52.04
19	4396923		Insert, Broil Pan   (Replaces: 703165)			Immediately	$ 52.04
20	701744		Screw		Appelez-nous	-
21	Y701541		Clip, Bulb		Appelez-nous	-
22	701741		Spacer, Oven		Appelez-nous	-
23	715294		Nut, Tee		Appelez-nous	-
23	702283		Insulation-back		Appelez-nous	-
23	702282		Insulation-sides,top,bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
