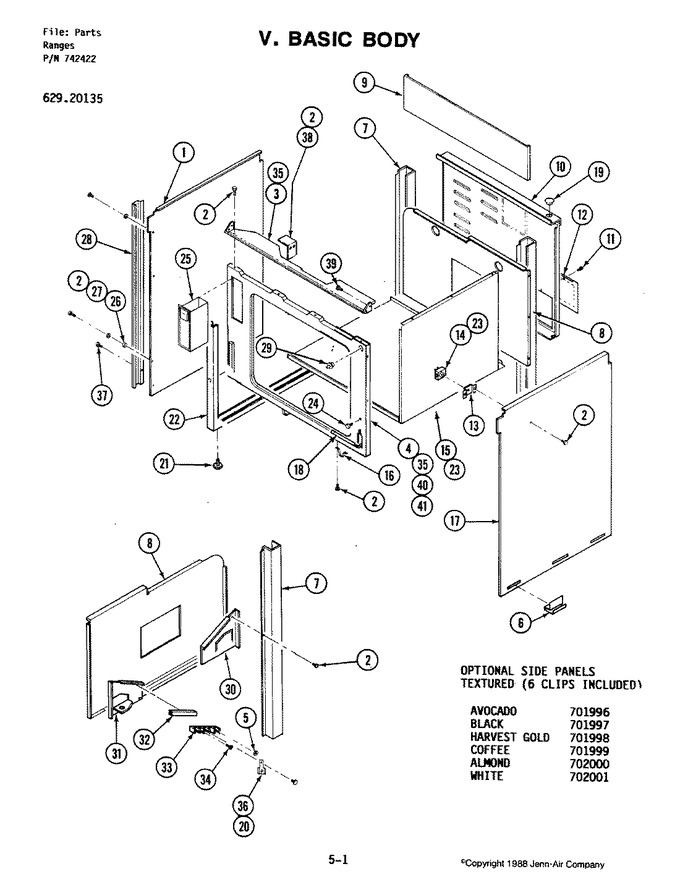

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-09198A		Panel, Side (lt)   (Replaces: 703484)				$ 490.59
2	WP90767		Screw   (Replaces: 715773)			Immediately	$ 7.04
3	712002		Angle, Mount		Appelez-nous	-
4	702329		Closure, Front		Appelez-nous	-
5	712081		Nut, Hex		Appelez-nous	-
6	Y702476		Clip, Spring		Appelez-nous	-
7	704296		Support,tube		Appelez-nous	-
8	Y702306		Back, Inner		Appelez-nous	-
9	Y702345		Plate, Back		Appelez-nous	-
10	702307		Cover, Rear (lower)		Appelez-nous	-
11	703958		Screw		Appelez-nous	-
12	702333		Cover, Access(r.h)		Appelez-nous	-
13	704337		Bracket		Appelez-nous	-
14	704355		Switch, Broil Cycle		Appelez-nous	-
15	Y702319		Panel, Bottom & Side (rt)		Appelez-nous	-
15	702336		Angle, Oven Support		Appelez-nous	-
16	702658		Bracket, Hat		Appelez-nous	-
17	DE81-04418A		Panel,side (rt)   (Replaces: 703485)				$ 112.47
18	Y703419		Hinge		Appelez-nous	-
18	Y703487		Hinge, Bracket		Appelez-nous	-
19	Y702696		Strain, Relief		Appelez-nous	-
20	WP71001171		Screw   (Replaces: Y712004)				$ 6.26
21	Y04100573		Leveler, Leg				$ 25.32
21	W11117769		Leveler,adjust   (Replaces: Y708696)			Immediately	$ 16.61
22	712192		Rail, Support Assembly		Appelez-nous	-
23	704335		Screw		Appelez-nous	-
24	715870		Screw		Appelez-nous	-
25	Y712001		Container,grease Assembly		Appelez-nous	-
26	00702462		Washer, Conical   (Replaces: 702462)				$ 1,015.54
27	712005		Washer, Flat		Appelez-nous	-
28	703486		Trim, Side		Appelez-nous	-
29	701666		Switch, Door		Appelez-nous	-
30	702557		Gussett (lt)		Appelez-nous	-
31	702556		Gussett (rt)		Appelez-nous	-
32	702898		Insulator		Appelez-nous	-
33	WP8203546		Block, Terminal   (Replaces: Y702284)			Immediately	$ 27.12
34	WP67006908		Screw   (Replaces: Y703002)			Immediately	$ 7.16
35	W11233072		Screw   (Replaces: Y708733)			Immediately	$ 12.62
36	Y702335		Strap, Ground		Appelez-nous	-
37	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
38	704854		Harness, Control----na		Appelez-nous	-
38	704916		Harness, Supply		Appelez-nous	-
38	DE81-08871A		Enclosure, Side (right)   (Replaces: 702183)				$ 526.73
39	703648		Harness, Backsplash		Appelez-nous	-
39	702731		Screw		Appelez-nous	-
40	703483		Channel, Support		Appelez-nous	-
41	WPW10068250		Screw   (Replaces: Y700582)				$ 3.66
