| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

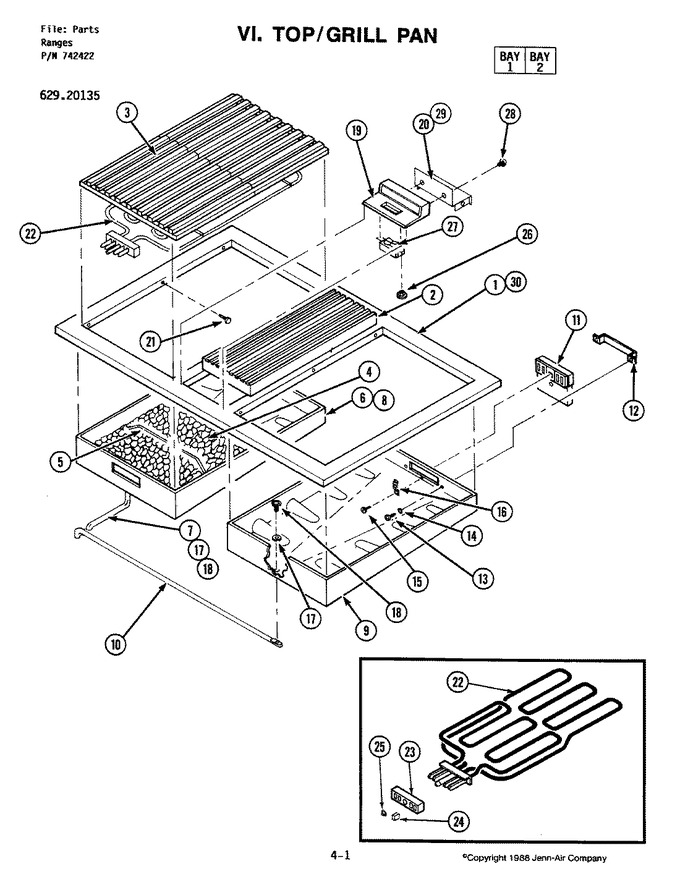

| 1 | 701853 | Top |
|
- | |||||
| 2 | 702568 | Grill, Air |
|
- | |||||
| 3 | Y703746 | Grates, Grill (2) |
|
- | |||||
| 4 | 708929 | Plate, Rock |
|
- | |||||
| 5 | 700819 | Support, Rock Plate |
|
$ 71.81 | |||||
| 6 | Y712227 | Wire, Blue |
|
- | |||||
| 6 | 701955 | Pan, Grill (lt) |
|
- | |||||
| 6 | Y712203 | Wire, Violet |
|
- | |||||
| 6 | 712107 | Cartridge Glass (black) |
|
- | |||||
| 6 | Y712200 | Wire, Yellow |
|
- | |||||
| 7 | Y702463 | Tube, Drain (left) |
|
- | |||||
| 8 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) |
|
Immediately | $ 96.61 | ||||
| 9 | Y701956 | Pan, Grill (rt) |
|
- | |||||
| 9 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) |
|
$ 87.19 | |||||
| 9 | Y712199 | Wire, Brown |
|
- | |||||
| 9 | WP5708M007-60 | Wire, Yellow (Replaces: Y712020) |
|
$ 117.23 | |||||
| 9 | WP5708M005-60 | Wire, Blue (Replaces: Y712016) |
|
$ 86.45 | |||||
| 9 | Y712229 | Kit, Wire |
|
$ 91.71 | |||||
| 10 | Y702327 | Tube, Drain (right) |
|
- | |||||
| 11 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) |
|
Immediately | $ 96.61 | ||||
| 12 | Y702698 | Bracket |
|
- | |||||
| 13 | WP59002061 | Screw (Replaces: Y707172) |
|
$ 6.98 | |||||
| 14 | Y707664 | Washer |
|
- | |||||
| 15 | WP489128 | Screw (Replaces: Y707341) |
|
$ 9.79 | |||||
| 16 | 74004835 | Clip (Replaces: Y702699) |
|
$ 11.37 | |||||
| 17 | 702747 | Washer, Teflon |
|
- | |||||
| 18 | 702748 | Nut, Drain Tube |
|
- | |||||
| 19 | Y704837 | Esdutcheon/logo |
|
- | |||||
| 20 | 702581 | Bracket, Filler |
|
- | |||||
| 21 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 12.62 | ||||
| 22 | Y700531 | Element Complete, 240v |
|
- | |||||
| 23 | WPY708730 | Block, Terminal (Replaces: Y708730) |
|
Immediately | $ 87.44 | ||||
| 24 | Y700450 | Clip, Shunt |
|
$ 9.51 | |||||
| 25 | Y708862 | Nut, Speed |
|
$ 13.08 | |||||
| 26 | 7103P166-60 | Palnut (Replaces: 715500) |
|
$ 15.91 | |||||
| 27 | Y704835 | Switch, Fan |
|
- | |||||
| 28 | 703003 | Screw |
|
- | |||||
| 29 | Y704630 | Screw |
|
- | |||||
| 29 | Y700556 | Clip, J |
|
- | |||||
| 30 | WP90767 | Screw (Replaces: 715773) |
|
Immediately | $ 7.04 |
