01 - Blower Motor


02 - Blower Motor


03 - Body

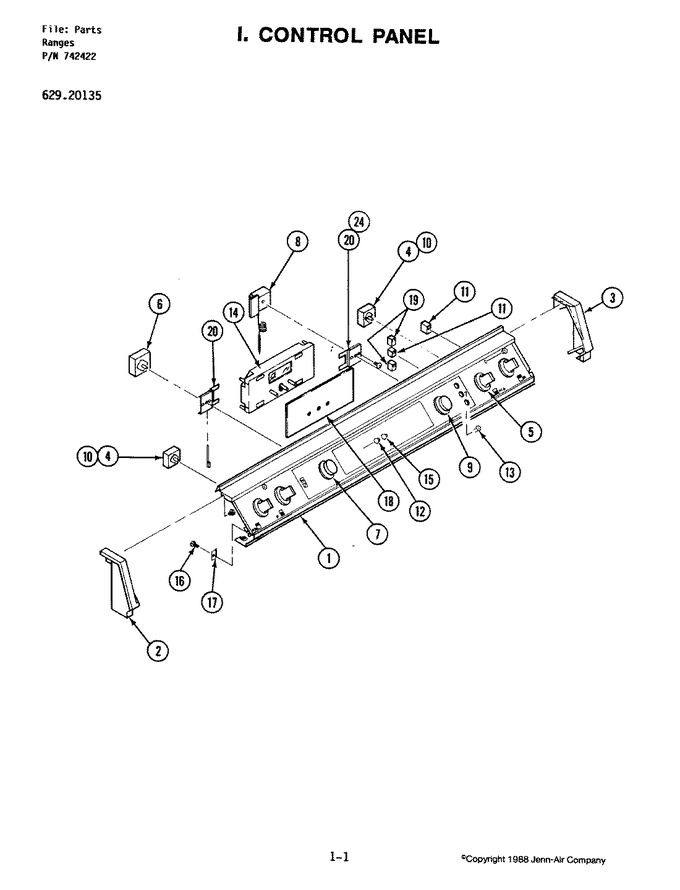

04 - Control Panel


05 - Door


06 - Internal Controls


07 - Oven


08 - Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704855		Panel, Control		Appelez-nous	-
2	702388		Cap, End (lt)		Appelez-nous	-
3	Y702387		Cap, End (rt)		Appelez-nous	-
4	703523		Wire, Orange (right)		Appelez-nous	-
4	W11120791		Switch, Infinite   (Replaces: 703650)			Immediately	$ 98.55
5	12200034		Knob, Infinite Switch   (Replaces: Y704839)				$ 95.17
6	703749		Wire, Orange		Appelez-nous	-
6	Y704850		Switch, Selector		Appelez-nous	-
7	WPY704841		Knob, Selector Switch   (Replaces: Y704841)				$ 40.37
8	704243		Wire, Brown		Appelez-nous	-
8	Y703674		Thermostat				$ 133.57
9	Y704840		Knob, Thermostat				$ 21.24
10	71002058		Screw   (Replaces: Y702124)				$ 5.82
11	Y702614		Light, Surface Indicator 120v		Appelez-nous	-
12	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)				$ 12.13
13	Y702615		Lens, Pilot Light		Appelez-nous	-
14	Y04100133		Clock	2	Appelez-nous	-
14	Y703708		Clock		Appelez-nous	-
15	WPW10339879		Tie, Cable   (Replaces: 701678)				$ 7.11
15	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)				$ 12.13
16	Y702976		Screw, Hex		Appelez-nous	-
17	702616		Bracket, Retaining		Appelez-nous	-
18	703668		Lens, Clock (blk)		Appelez-nous	-
19	Y704222		Light, Oven Pilot (240v)		Appelez-nous	-
19	704854		Harness, Control----na		Appelez-nous	-
19	704916		Harness, Supply		Appelez-nous	-
20	704244		Wire, Blue		Appelez-nous	-
20	703667		Bracket, Clock		Appelez-nous	-
20	703752		Wire, Resistor Therm.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
