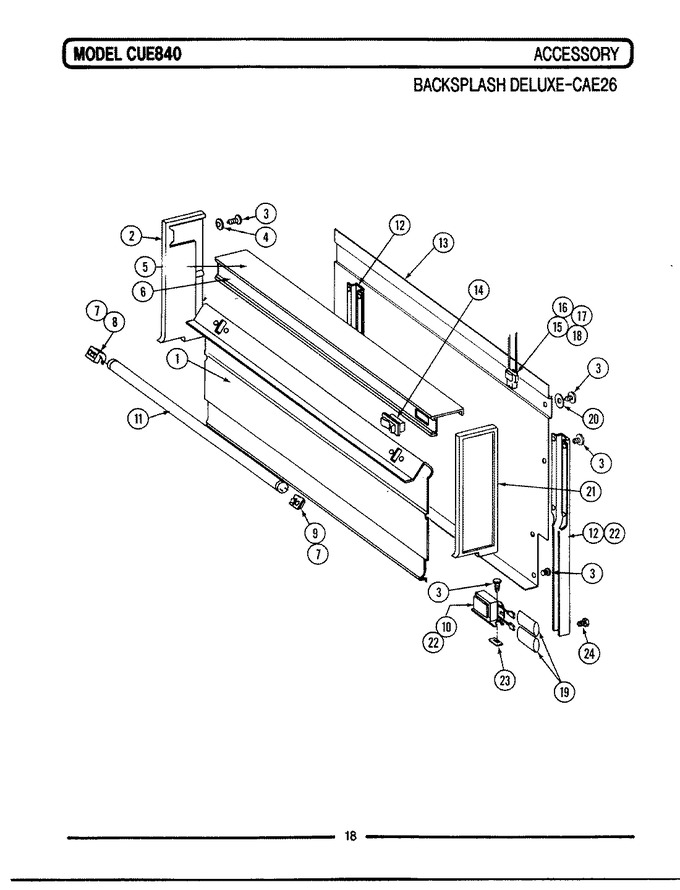

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704631		Extrusion, Backsplash		Appelez-nous	-
2	703152		Cap, End (lt)		Appelez-nous	-
3	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
4	715910		Washer, Lock		Appelez-nous	-
5	700924		Backsplash Extrusion		Appelez-nous	-
6	Y704634		Insert, Extrusion		Appelez-nous	-
7	Y707150		Screw		Appelez-nous	-
8	712115		Socket Fl		Appelez-nous	-
9	712114		Socket Fl		Appelez-nous	-
10	Y702653		Ballast		Appelez-nous	-
11	Y700932		Florescent Light		Appelez-nous	-
12	DE81-04590A		Post Backsplash   (Replaces: 702379)				$ 185.09
13	702378		Cover		Appelez-nous	-
14	712514		Switch, Light		Appelez-nous	-
15	Y712513		Plug		Appelez-nous	-
16	Y703392		Relief, Strain		Appelez-nous	-
17	700930		Cable Clamp		Appelez-nous	-
18	701508		Screw (no.4b Pan-ph Hd)		Appelez-nous	-
19	Y715563		Connector, 1/4`` In-line		Appelez-nous	-
20	715910		Washer, Lock		Appelez-nous	-
21	703151		Cap, End (rt)		Appelez-nous	-
22	WPW10339879		Tie, Cable   (Replaces: Y702105)				$ 7.11
23	701958		Clip, Tinnerman		Appelez-nous	-
24	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
