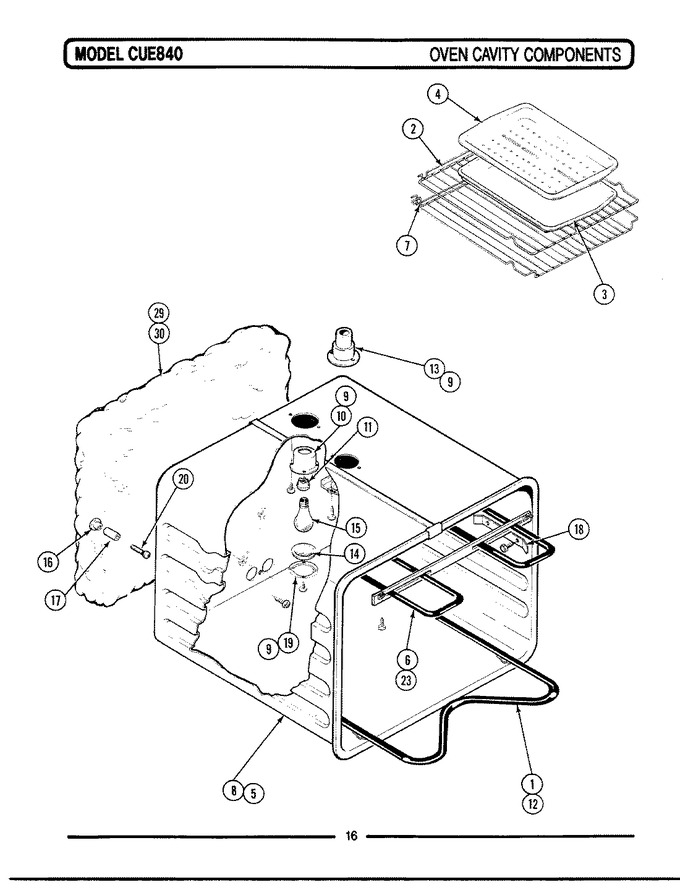

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100021		Element, Bake (240v)   (Replaces: Y704664)				$ 179.82
2	Y704660		Rack, Oven				$ 104.03
3	4396923		Pan, Broil   (Replaces: 703164)			Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)			Immediately	$ 52.04
5	Y702618		Clip, Oven		Appelez-nous	-
6	WPY04100514		Element, Broil (240v)   (Replaces: Y704666)				$ 138.97
7	Y704662		Rack, Oven (offset)		Appelez-nous	-
8	712599		Oven Assy.		Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
10	704142		Receptacle, Holder		Appelez-nous	-
11	Y704145		Receptacle, Snap-in		Appelez-nous	-
12	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
13	701738		Tube, Vent		Appelez-nous	-
14	Y704143		Lens, Light		Appelez-nous	-
15	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)			Immediately	$ 16.80
16	715294		Nut, Tee		Appelez-nous	-
17	701741		Spacer, Oven		Appelez-nous	-
18	Y701541		Clip, Bulb		Appelez-nous	-
19	Y704144		Retainer, Lens		Appelez-nous	-
20	701744		Screw		Appelez-nous	-
