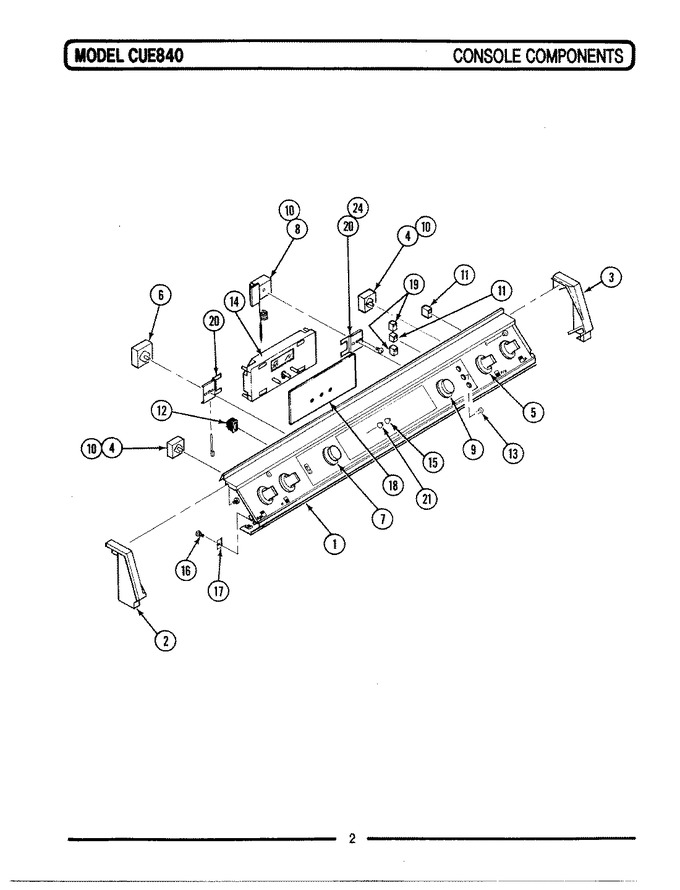

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704964		Panel, Control		Appelez-nous	-
2	Y702387		Cap, End (rt)		Appelez-nous	-
3	702388		Cap, End (lt)		Appelez-nous	-
4	703523		Wire, Orange (right)		Appelez-nous	-
4	W11120791		Switch, Infinite   (Replaces: 703650)			Immediately	$ 98.55
5	12200034		Knob, Infinite (blk)   (Replaces: Y704613)				$ 95.17
6	Y703673		Switch, Selector		Appelez-nous	-
6	703749		Wire, Orange		Appelez-nous	-
7	704627		Knob, Selector		Appelez-nous	-
8	Y703674		Thermostat				$ 133.57
8	704243		Wire, Brown		Appelez-nous	-
9	703886		Knob, Thermostat Cwe601		Appelez-nous	-
10	71002058		Screw   (Replaces: Y702124)				$ 5.82
11	Y702614		Light, Surface Indicator 120v		Appelez-nous	-
12	Y704311		Switch, Oven Light (blk)		Appelez-nous	-
13	703126		Lens, Pilot (amber)		Appelez-nous	-
14	Y703708		Clock		Appelez-nous	-
15	WPW10339879		Tie, Cable   (Replaces: 701678)				$ 7.11
15	WP7711P492-60		Knob, Clock (blk)   (Replaces: Y703910)				$ 12.13
16	Y702976		Screw, Hex		Appelez-nous	-
17	702616		Bracket, Retaining		Appelez-nous	-
18	704608		Lens, Timer (wht)				$ 209.07
19	Y704222		Light, Oven Pilot (240v)		Appelez-nous	-
19	704308		Harness, Supply		Appelez-nous	-
19	704310		Harness, Control		Appelez-nous	-
20	703667		Bracket, Clock		Appelez-nous	-
21	703752		Wire, Resistor Therm.		Appelez-nous	-
21	WP7711P492-60		Knob, Clock (sm/blk)   (Replaces: Y704239)				$ 12.13
21	704244		Wire, Blue		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
