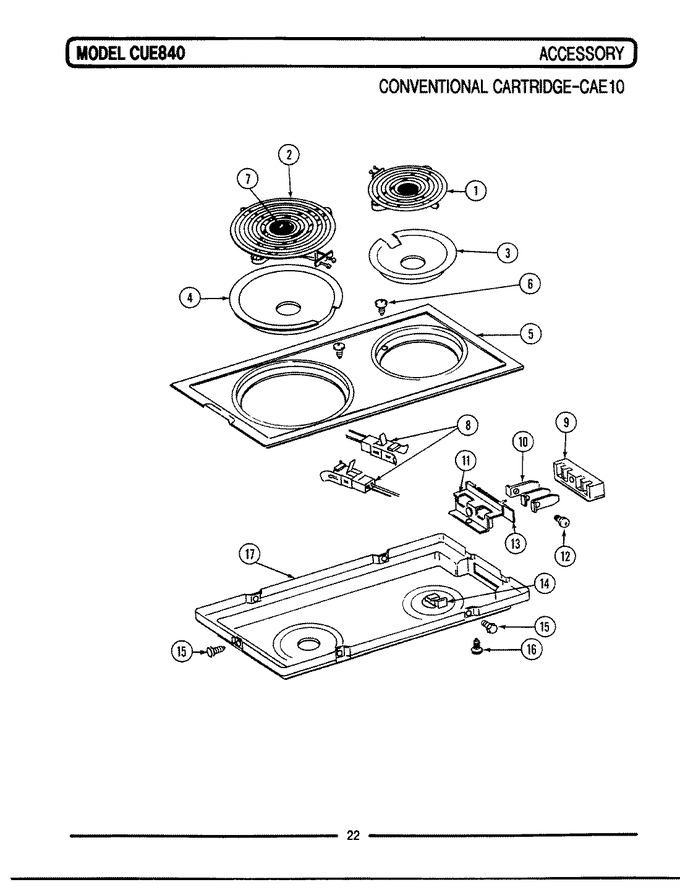

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100165		Surface Element-small   (Replaces: 550071)			Immediately	$ 50.62
1	715929		Elem 6 208v		Appelez-nous	-
2	WPY04100166		Surface Element-large   (Replaces: 550072)			Immediately	$ 47.21
2	Y715930		Element, Conventional		Appelez-nous	-
3	715877		Pan, Drip (6``)			Immediately	$ 19.39
4	715878		Pan, Drip (8``)			Immediately	$ 21.16
5	WP2002F208-50		Cartridge, Top (chr)   (Replaces: 700535)				$ 188.34
6	WP74004005		Screw   (Replaces: Y708359)				$ 6.95
7	Y700132		Medallion		Appelez-nous	-
8	12001676		Rewire Kit   (Replaces: 700125)			Immediately	$ 28.45
9	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 87.44
10	Y708572		Spade, Contact			Immediately	$ 11.34
11	Y700648		Bracket, Retaining Assy.		Appelez-nous	-
12	WP488234		Screw   (Replaces: 708861)				$ 6.07
13	708834		Insulator, Contact Spade				$ 13.49
14	Y708910		Clip		Appelez-nous	-
15	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
16	715870		Screw		Appelez-nous	-
17	703347		Pan, Cartridge (blk)		Appelez-nous	-
