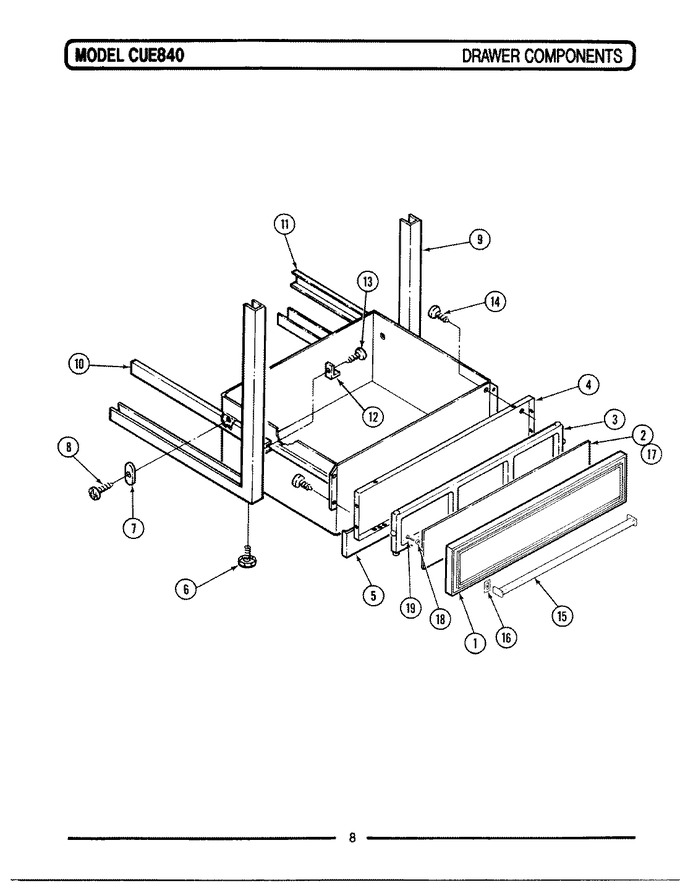

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 702340 | Frame, Door |
|
- | |||||
| 2 | 705089 | Panel, Base |
|
- | |||||
| 3 | Y702896 | Spacer, Base Door |
|
- | |||||
| 4 | Y702341 | Liner, Door |
|
- | |||||
| 5 | 703966 | Panel, Kick |
|
- | |||||
| 6 | W11117769 | Leveler,adjust (Replaces: Y708696) |
|
Immediately | $ 16.61 | ||||
| 7 | 703963 | Slide, Drawer |
|
- | |||||
| 8 | 712066 | Screw |
|
- | |||||
| 9 | 712000 | Rail, Support Assembly |
|
- | |||||
| 10 | 703967 | Chanel, Drawer (lt) |
|
- | |||||
| 11 | 703968 | Chanel, Drawer (rt) |
|
- | |||||
| 12 | Y703962 | Guide, Drawer |
|
- | |||||
| 13 | WP179051 | Screw (Replaces: 708764) |
|
Immediately | $ 7.16 | ||||
| 14 | W11233072 | Screw (blk) (Replaces: Y704237) |
|
Immediately | $ 12.62 | ||||
| 15 | 704958 | Handle, Drawer |
|
- | |||||
| 16 | 703862 | Spacer, Door Cwe1000 |
|
- | |||||
| 17 | 705088 | Panel, Back-up |
|
- | |||||
| 18 | 701736 | Washer |
|
- | |||||
| 19 | W11164114 | Screw (no.10-24) ----sub (Replaces: Y703532) |
|
$ 3.76 | |||||
| NI | 712608 | Drawer |
|
- |
