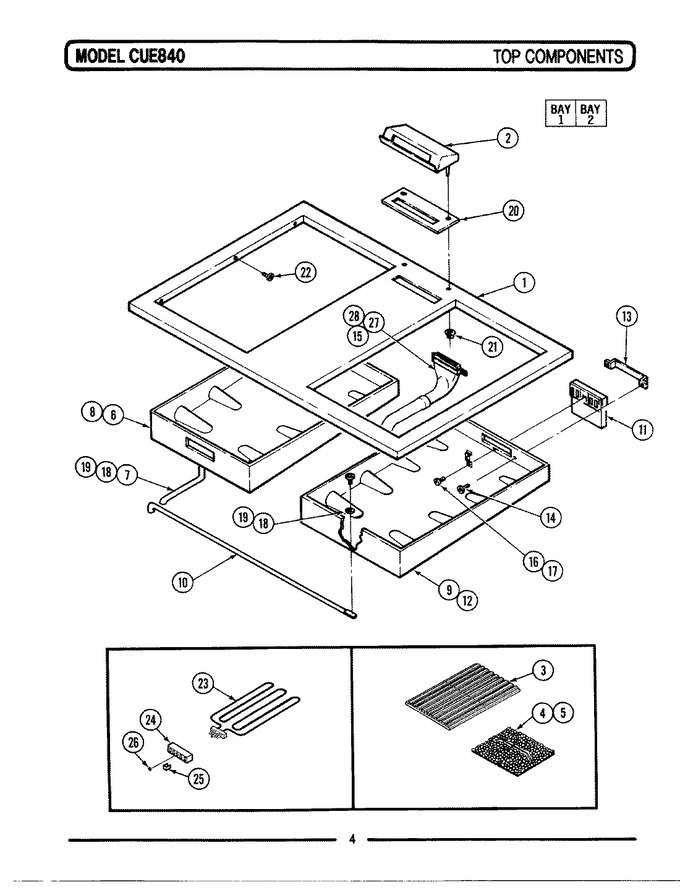

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704291		Top, Range		Appelez-nous	-
2	704320		Trim, Vent		Appelez-nous	-
3	Y703746		Grates, Grill (2)		Appelez-nous	-
4	708929		Plate, Rock		Appelez-nous	-
5	700819		Support, Rock Plate				$ 71.81
6	701955		Pan, Grill (lt)		Appelez-nous	-
6	712354		Wire, Blue		Appelez-nous	-
6	Y712200		Wire, Yellow		Appelez-nous	-
6	712356		Wire Kit		Appelez-nous	-
6	Y712197		Wire, Brown		Appelez-nous	-
7	Y702463		Tube, Drain (left)		Appelez-nous	-
8	704168		Receptacle, Ceramic		Appelez-nous	-
9	Y712199		Wire, Brown		Appelez-nous	-
9	WP5708M008-60		Wire, Violet   (Replaces: Y712202)				$ 87.19
9	Y712357		Wire Kit		Appelez-nous	-
9	Y701956		Pan, Grill (rt)		Appelez-nous	-
9	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)				$ 117.23
10	Y702327		Tube, Drain (right)		Appelez-nous	-
11	WPY702434		Receptacle   (Replaces: 702783)			Immediately	$ 96.61
12	Y702825		Plug, Rubber		Appelez-nous	-
13	Y702698		Bracket		Appelez-nous	-
14	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
15	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
16	00489128		Screw   (Replaces: Y705026)				$ 773.97
17	74004835		Clip   (Replaces: Y702699)				$ 11.37
18	702747		Washer, Teflon		Appelez-nous	-
19	702748		Nut, Drain Tube		Appelez-nous	-
20	704443		Gasket, Vent Trim		Appelez-nous	-
21	Y705023		Palnut		Appelez-nous	-
22	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
23	703944		Element,complete,energy Saver		Appelez-nous	-
23	712612		Element Cmplt Grill 208v		Appelez-nous	-
24	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 87.44
25	Y700450		Clip, Shunt				$ 9.51
26	Y708862		Nut, Speed				$ 13.08
27	704316		Tube, Vent		Appelez-nous	-
28	Y700556		Clip, J		Appelez-nous	-
