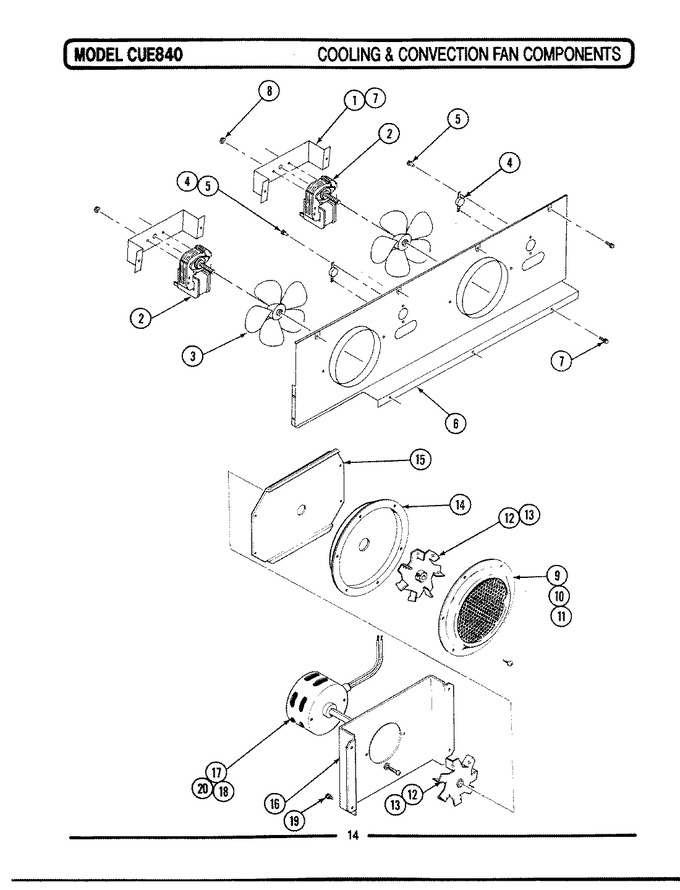

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y702542		Bracket, Mounting Motor		Appelez-nous	-
2	Y702549		Motor, Fan		Appelez-nous	-
3	Y702525		Blade, Fan		Appelez-nous	-
4	704317		Limit, Thermal		Appelez-nous	-
5	WP59002061		Screw   (Replaces: Y707172)				$ 6.98
6	704293		Back, Unit		Appelez-nous	-
7	WP90767		Screw   (Replaces: 715773)			Immediately	$ 7.04
8	M0282005		Nut, Hex   (Replaces: 701719)				$ 7.07
9	701707		Plate, Convection Front		Appelez-nous	-
10	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
11	WP74003976		Washer   (Replaces: 702592)				$ 6.47
12	701711		Wheel, Convection		Appelez-nous	-
13	701709		Screw, Set		Appelez-nous	-
14	DE81-03744A		Plate, Convection Back   (Replaces: 701712)				$ 312.62
15	DE81-03745A		Cover, Motor Front   (Replaces: 701713)				$ 251.40
16	Y700601		Plate, Motor Mount		Appelez-nous	-
17	Y703035		Motor, Convect		Appelez-nous	-
18	WP488234		Screw   (Replaces: 708861)				$ 6.07
19	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
20	715910		Washer, Lock		Appelez-nous	-
