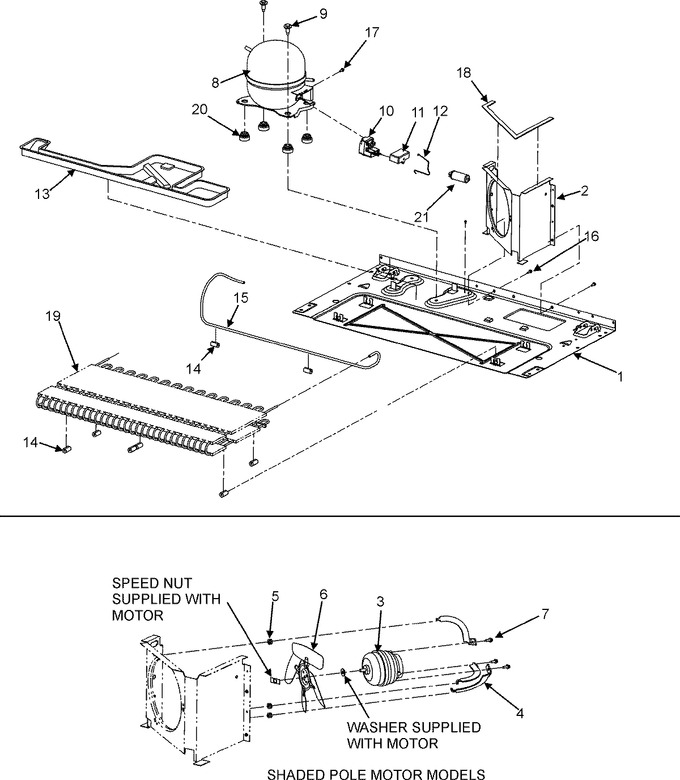

02 - Compressor (gc2225gekb/s/w)


03 - Controls (gc2225gekb/s/w)


04 - Crisper Assembly (gc2225gekb/s/w)


05 - Evap Fan/cris Lt/filter (gc2225gekb/s/w)


06 - Evap/rollers/water Tank (gc2225gekb/s/w)


07 - Fountain (gc2225gekb/s/w)


08 - Freezer Compartment (gc2225gekb/s/w)


09 - Freezer Door (gc2225gekb/s/w)


10 - Freezer Shelves (gc2225gekb/s/w)


11 - Handles (gc2225geks)


12 - Hinges & Toe Grille (gc2225gekb/s/w)


13 - Ice Bucket Assy. (gc2225gekb/s/w)


14 - Ice Maker (gc2225gekb/s/w)


15 - Refrigerator Door (gc2225gekb/s/w)


16 - Refrigerator Shelves (gc2225gekb/s/w)


17 - Supplemental Information(gc2225gekb/s/w)


18 - Wiring Information(gc2225gekb/s/w-ser10)


19 - Wiring Information(gc2225gekb/s/w-ser12)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001512		Pan, Base	10	Appelez-nous	-
2	12687101		Shroud, Condenser	10	Appelez-nous	-
2	67006661		Shroud, Condenser	12	Appelez-nous	-
3	67005104		Motor, Condenser Fan	10	Appelez-nous	-
4	67003354		Bracket, Condenser Motor	10	Appelez-nous	-
5	61004743		Grommet, Bracket	10			$ 5.51
6	WP12587601		Blade, Cond Fan   (Replaces: 12587601)	10			$ 114.00
7	M0223816		Screw, Tr	10			$ 5.27
8	W10309997		Compressor Kit   (Replaces: 12002861)	12			$ 500.51
8	W10309997		Compressor Kit   (Replaces: 12002637)	10			$ 500.51
9	12846902		Screw, Shoulder   (Replaces: 67006432)	10			$ 11.69
10	W10848274		Overload/relay   (Replaces: 67004815)	10			$ 159.30
10	67006660		Overload/relay Capacitor Assy	12	Appelez-nous	-
11	WP2201147		Capacitor   (Replaces: 67007162)	12			$ 116.07
11	WP2201147		Capacitor   (Replaces: 67002815)	10			$ 116.07
12	67003179		Strap, Bale	10	Appelez-nous	-
12	67007052		Clip, Capacitor	12	Appelez-nous	-
13	67004744		Pan, Drain	10	Appelez-nous	-
14	67005680		Grommet, Condenser   (Replaces: 12578601)	10			$ 18.95
15	WP12866903		Tube, Discharge   (Replaces: 67004700)	10		Immediately	$ 120.18
16	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.26
17	12992301		Screw, Tf   (Replaces: M0231604)	10			$ 7.32
18	WP854334		Seal   (Replaces: 61003210)	10			$ 11.95
19	67002235		Block-eps Cond	10	Appelez-nous	-
19	WP67006131		Condenser X   (Replaces: 67004682)	10			$ 330.07
20	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 6.47
21	67005062		Filter, Line	10	Appelez-nous	-
NI	12975301		Harness, Mc	12	Appelez-nous	-
NI	67005116		Harness, Mc	10	Appelez-nous	-
