Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10833902 Clamp, Tube   (Replaces: M0108105) 10 Special Order $ 9.89

1 67004938 Waterline Assy.   (Replaces: 67005035) 10 Special Order $ 119.34

2 12598902B Actr Pad Frame Assy. (blk) 10 Special Order $ 35.81

3 M0104102 Clip, Cord 10 Special Order $ 8.10

4 12665101 Seal, Ice Chute 10 Special Order $ 5.84

5 12563401 Insul, Chute Doorxx 10 Appelez-nous -
6 12562701 Door, Ice Chute 10 Special Order $ 5.84

7 67004119 Hinge, Ice Chute 10 Special Order $ 5.70

8 WP12565502 Spring, Chute Dr   (Replaces: 12565502) 10 Special Order $ 7.03

9 67005010 Extension, Ice Chute 10 Appelez-nous -
9 67006425 Screw, Sm   (Replaces: M0238642) 10 In-Stock Immediately $ 6.26

9 12703606 Extension, Ice Chute 12 Appelez-nous -
10 67002170 Solenoid 10 Appelez-nous -
10 WP488234 Screw, Mach   (Replaces: M0200314) 10 Special Order $ 6.07

10 Y67006001 Solenoid 12 Appelez-nous -
11 67003741 Bulb, Light (blue) 10 Appelez-nous -
12 12617501 Socket, Light 10 Appelez-nous -
13 12703809BB Facade (blk) 12 Special Order $ 127.34

13 67004900 Facade (blk) 10 Appelez-nous -
14 WP67004151 Insert, Facade (blk)   (Replaces: 67004901) 10 Special Order $ 72.93

15 R9800670 Screw, Mounting   (Replaces: M0223230) 10 Special Order $ 8.44

16 WPY67003722 Tray, Sump (blk)   (Replaces: Y67003722) 10 Special Order $ 116.63

17 67007154 Board, Control 12 Appelez-nous -
17 67005013 Board, Control 10 Appelez-nous -
18 2006254 Screw   (Replaces: 67006683) 11 Special Order $ 11.82

18 2006254 Screw,hi/lo   (Replaces: M0237902) 10 Special Order $ 11.82

19 WP12575501 Switch, Limit   (Replaces: 12575501) 10 Special Order $ 62.01


    View Diagram in Separate Window     Print Icon   Print Part List

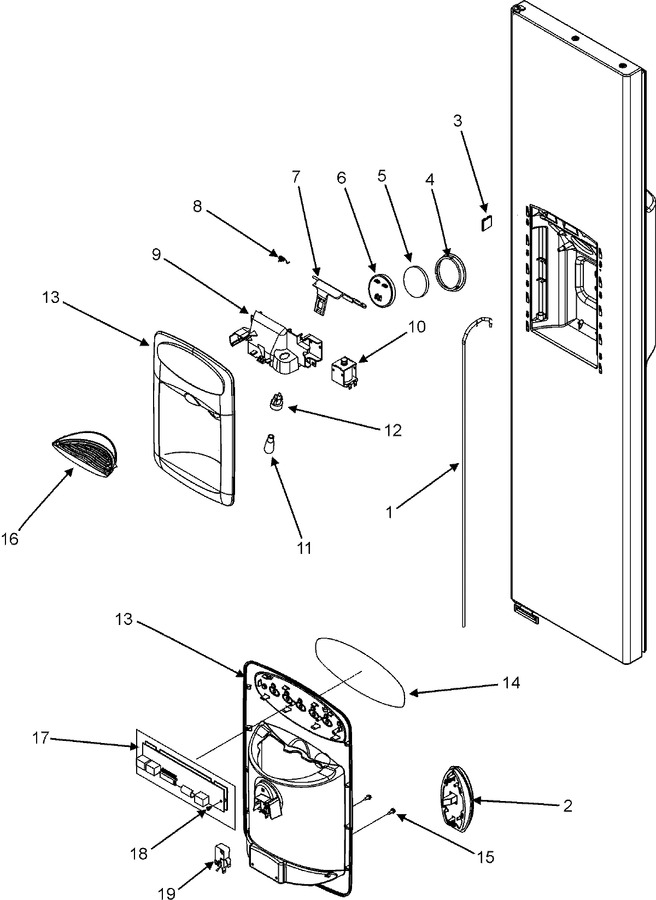

Diagram for GC2225GEKS
