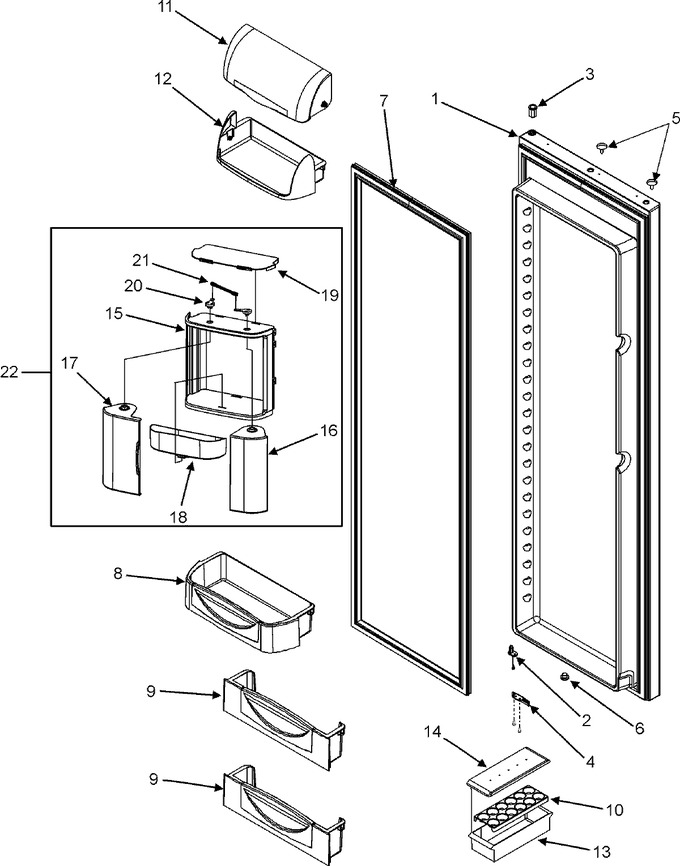

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004468		Door Assy., Ref. Foam (stnls)	10	Appelez-nous	-
1	12818234S		Door Assy., Ref. Foam (stnls)	12	Appelez-nous	-
2	R0181181		Closure, Door (blk)   (Replaces: 12113204)	10		Immediately	$ 6.47
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 9.40
2	67006134		Closure, Door (blk)	12	Appelez-nous	-
3	10961002		Bushing, Door (blk)	10	Appelez-nous	-
4	12636401B		Stop, Door (blk)	10			$ 10.80
4	67006516		Stop, Door (blk)	12	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 7.20
5	M0311607		Plug, Button (gry)	10	Appelez-nous	-
6	A3080001		Plug, Button (blk)	10	Appelez-nous	-
7	W10840101		Gasket, Ref. Door (blk)   (Replaces: 67003965)	10			$ 280.50
8	67004229		Bucket Assy., Ref. Door	10	Appelez-nous	-
9	67004473		Bucket Assy., Ref. Door	10	Appelez-nous	-
10	10436506		Tray, Egg	10			$ 8.28
11	67001325		Door, Dairy	10	Appelez-nous	-
12	67002304		Tray, Dairy	10	Appelez-nous	-
13	10423131		Bin, Utility	10			$ 31.13
14	10436404		Lid, Utility	10			$ 60.85
15	67002294		Frame, Large Chiller	10	Appelez-nous	-
16	67002297		Door, Large Chiller (rt)	10	Appelez-nous	-
17	67003136		Door, Large Chiller (lt)	10	Appelez-nous	-
18	67002296		Tray, Chiller	10			$ 26.66
19	67002291		Cover, Chiller	10	Appelez-nous	-
20	67002293		Linkage, Chiller	10			$ 11.76
21	67002292		Linkage, Ctr Chiller	10	Appelez-nous	-
22	67003321		Lrg Chiller Assy	10	Appelez-nous	-
