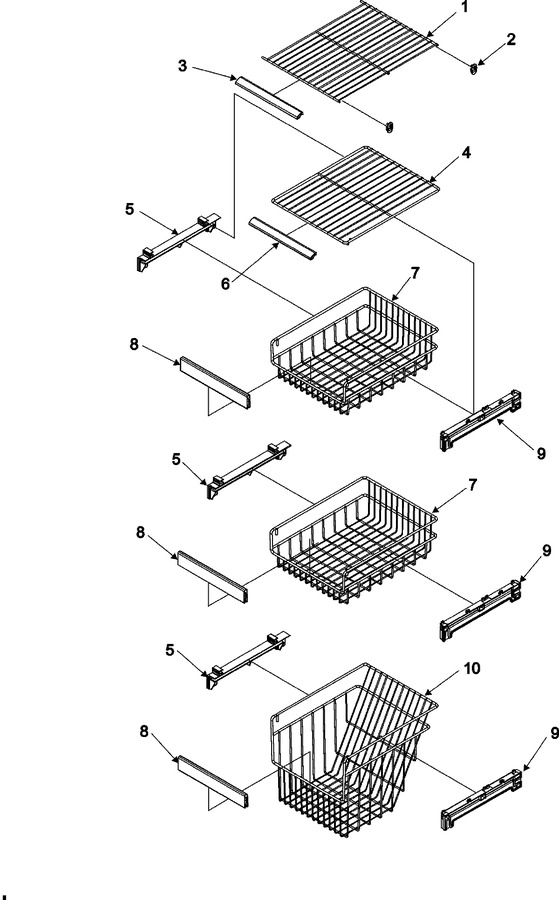

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003895		Shelf, Upr Frz	10	Appelez-nous	-
2	C8973801		Support, Frz Shelf	10			$ 8.35
3	12314102		Trim, Basket/shelf	10	Appelez-nous	-
4	67004691		Shelf, Lwr Frz	10	Appelez-nous	-
5	67004533		Slide, Basket (lt)	10	Appelez-nous	-
6	12314101		Trim, Basket/shelf	10	Appelez-nous	-
7	67004534		Basket-22 Sm Fz	10	Appelez-nous	-
8	67004252		Trim, Fz Basket	10	Appelez-nous	-
9	67004535		Slide, Basket (rt)	10	Appelez-nous	-
10	67004536		Basket-22 Lw Fz	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
