SELECT A DIAGRAM

01 - Cabinet Back (gc2225gekb/s/w)


02 - Compressor (gc2225gekb/s/w)


03 - Controls (gc2225gekb/s/w)


04 - Crisper Assembly (gc2225gekb/s/w)


05 - Evap Fan/cris Lt/filter (gc2225gekb/s/w)


06 - Evap/rollers/water Tank (gc2225gekb/s/w)


07 - Fountain (gc2225gekb/s/w)


08 - Freezer Compartment (gc2225gekb/s/w)


09 - Freezer Door (gc2225gekb/s/w)


10 - Freezer Shelves (gc2225gekb/s/w)


11 - Handles (gc2225geks)


12 - Hinges & Toe Grille (gc2225gekb/s/w)


13 - Ice Bucket Assy. (gc2225gekb/s/w)


14 - Ice Maker (gc2225gekb/s/w)


15 - Refrigerator Door (gc2225gekb/s/w)


16 - Refrigerator Shelves (gc2225gekb/s/w)


17 - Supplemental Information(gc2225gekb/s/w)


18 - Wiring Information(gc2225gekb/s/w-ser10)


19 - Wiring Information(gc2225gekb/s/w-ser12)

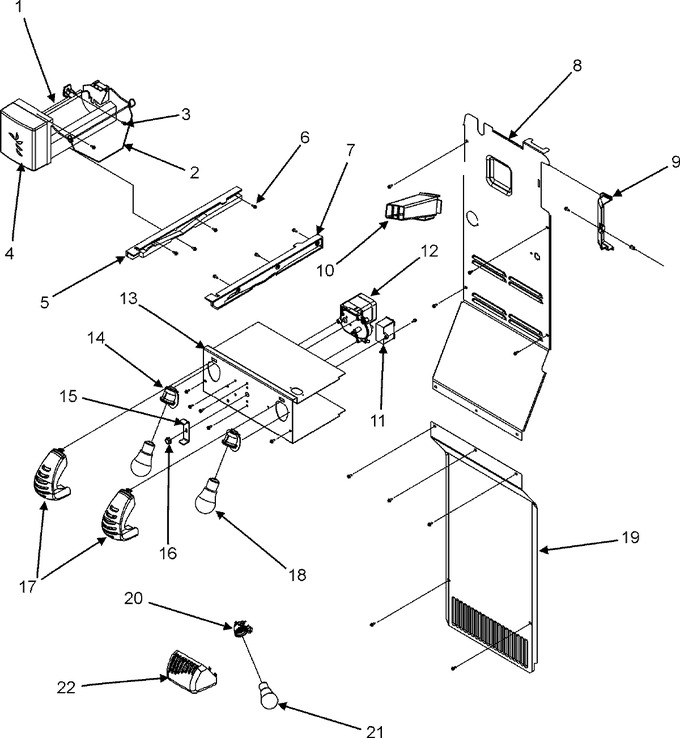

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10190972		Ice Maker Assy. (230v-50hz)x   (Replaces: D7846305)	10			$ 152.14
1	WPW10190972		Ice Maker Assy. (230v-50hz)   (Replaces: 67006665)	12			$ 152.14
1	WP2256087		Brkt, Ice Maker   (Replaces: 67005026)	10			$ 83.70
2	12671401		Assy, Im Arm/wire	10	Appelez-nous	-
3	M0238833		Screw Shoulder	10	Appelez-nous	-
4	WPW10289690		Cover, Ice Maker   (Replaces: 12582501)	10		Immediately	$ 7.56
5	67005375		Glide, Frz. (lt)   (Replaces: 67004322)	10			$ 268.13
6	67006529		Screw, Sm (stnls)   (Replaces: M0213530)	10			$ 11.55
7	67004323		Glide, Frz. (rt)	10	Appelez-nous	-
8	67003580		Back, Inner Fz	10	Appelez-nous	-
8	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.26
8	12403317		Back, Inner Fz	12	Appelez-nous	-
9	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.26
9	M0580205		Grommet, Screw	10	Appelez-nous	-
9	12583101		Cover, Supply Air	10	Appelez-nous	-
10	67003581		Duct, Quick Ice	10	Appelez-nous	-
11	C8931609		Capacitor (420 Vac)	10	Appelez-nous	-
11	WPW10139210		Screw, Tc   (Replaces: M0226528)	10			$ 6.75
12	67003224		Motor, Auger	10	Appelez-nous	-
12	12972302		Harness, Auger Motor	12	Appelez-nous	-
12	67005120		Harness, Auger Motor	10	Appelez-nous	-
12	10525205		Motor, Auger	12	Appelez-nous	-
12	WPW10139210		Screw, Tc   (Replaces: M0226528)	10			$ 6.75
13	67002887		Cover, Auger Motor	10	Appelez-nous	-
13	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.26
13	12561721		Cover, Auger Motor	12	Appelez-nous	-
14	W11447232		Socket, Light   (Replaces: 67005016)	10		Immediately	$ 11.89
15	10114901		Driver (ice Maker)	10			$ 1.61
16	WPM0223101		Nut, Locking   (Replaces: M0223101)	10			$ 6.91
17	67004433		Shield, Fz Light	10	Appelez-nous	-
18	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 10.58
19	67004192		Cover, Evap	10	Appelez-nous	-
19	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.26
19	12403403		Cover, Evap	12	Appelez-nous	-
20	W11447232		Socket, Light   (Replaces: 67005016)	10		Immediately	$ 11.89
21	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 10.58
22	67004135		Shield, Fz Light	10	Appelez-nous	-
