Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP8281196 Screw-mach   (Replaces: M0202327) 10 In-Stock Immediately $ 6.47

2 W10217485 Cover, Top Hinge (lt-blk)   (Replaces: 12629802B) 10 Special Order $ 19.48

3 R9800670 Screw, Tf   (Replaces: M0238731) 10 Special Order $ 8.44

4 W11214483 Screw, Mach   (Replaces: M0202321) 10 Special Order $ 12.62

5 12626911ED Hinge, Top (lt-blk)   (Replaces: 12626902ED) 10 Special Order $ 76.33

6 67003485 Cover, Corner (blk) 10 In-Stock Immediately $ 18.98

7 12629801B Cover, Top Hinge (rt-blk) 10 Special Order $ 25.13

8 WP2300868 Union, Tube (5/16``-5/16``)   (Replaces: 61006182) 10 In-Stock Immediately $ 26.15

9 12626910ED Hinge, Top (rt-blk)   (Replaces: 12626901ED) 10 Special Order $ 107.03

10 12636901ED Hinge, Bottom (lt-blk) 10 Special Order $ 34.72

10 67007007 Hinge, Bottom (lt-blk) 12 Appelez-nous -
11 67003858 Screw, Bottom Hinge 10 Appelez-nous -
12 W11227370 Screw, Tc   (Replaces: M0220431) 10 In-Stock Immediately $ 12.78

13 67006493 Closure, Door (blk) 12 Special Order $ 19.93

13 R0181181 Closure, Door (blk)   (Replaces: 12431302) 10 In-Stock Immediately $ 6.47

14 WP67005716 Shim, Dr Closure (blk)   (Replaces: 10361806) 10 Special Order $ 6.71

15 67007008 Hinge, Bottom (rt-blk) 12 Appelez-nous -
15 12636902ED Hinge, Bottom (rt-blk) 10 Appelez-nous -
16 12630301B Cover, Lwr Hinge (blk) 10 Special Order $ 12.88

17 WP67006687 Grille, Toe (blk)   (Replaces: 67006687) 12 Special Order $ 95.80

17 12627302 Clip, Toe Grille 10 Special Order $ 5.84

17 67002224 Grille Assy., Toe (blk) 10 Special Order $ 38.59

18 12695601 Shim, Top Hinge 10 Appelez-nous -
19 W11177593 Brake, Foot   (Replaces: 67003868) 10 Special Order $ 10.44


    View Diagram in Separate Window     Print Icon   Print Part List

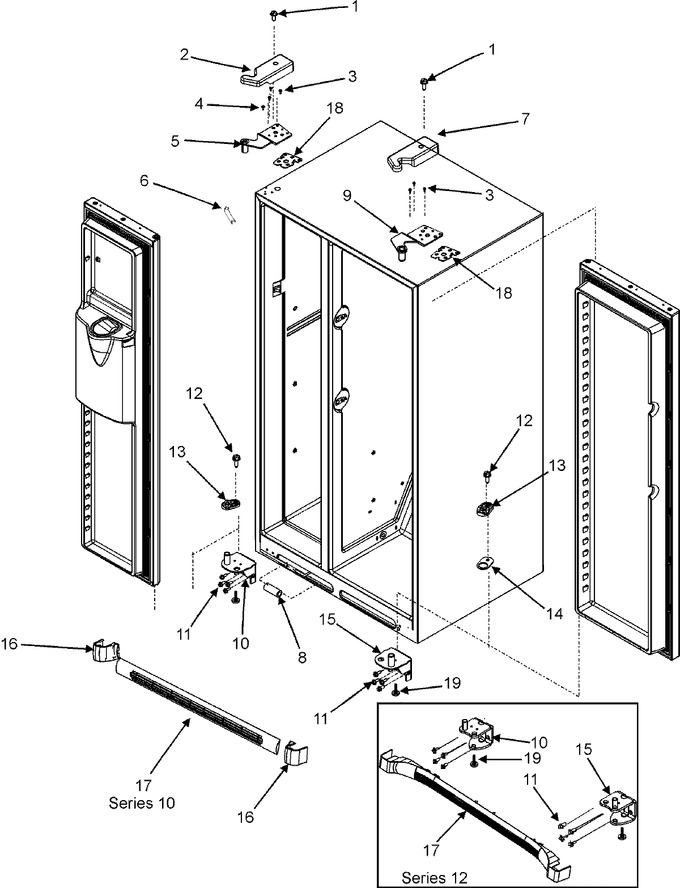

Diagram for GC2225GEKS
