SELECT A DIAGRAM

01 - Cabinet Back (gc2225gekb/s/w)


02 - Compressor (gc2225gekb/s/w)


03 - Controls (gc2225gekb/s/w)


04 - Crisper Assembly (gc2225gekb/s/w)


05 - Evap Fan/cris Lt/filter (gc2225gekb/s/w)


06 - Evap/rollers/water Tank (gc2225gekb/s/w)


07 - Fountain (gc2225gekb/s/w)


08 - Freezer Compartment (gc2225gekb/s/w)


09 - Freezer Door (gc2225gekb/s/w)


10 - Freezer Shelves (gc2225gekb/s/w)


11 - Handles (gc2225geks)


12 - Hinges & Toe Grille (gc2225gekb/s/w)


13 - Ice Bucket Assy. (gc2225gekb/s/w)


14 - Ice Maker (gc2225gekb/s/w)


15 - Refrigerator Door (gc2225gekb/s/w)


16 - Refrigerator Shelves (gc2225gekb/s/w)


17 - Supplemental Information(gc2225gekb/s/w)


18 - Wiring Information(gc2225gekb/s/w-ser10)


19 - Wiring Information(gc2225gekb/s/w-ser12)

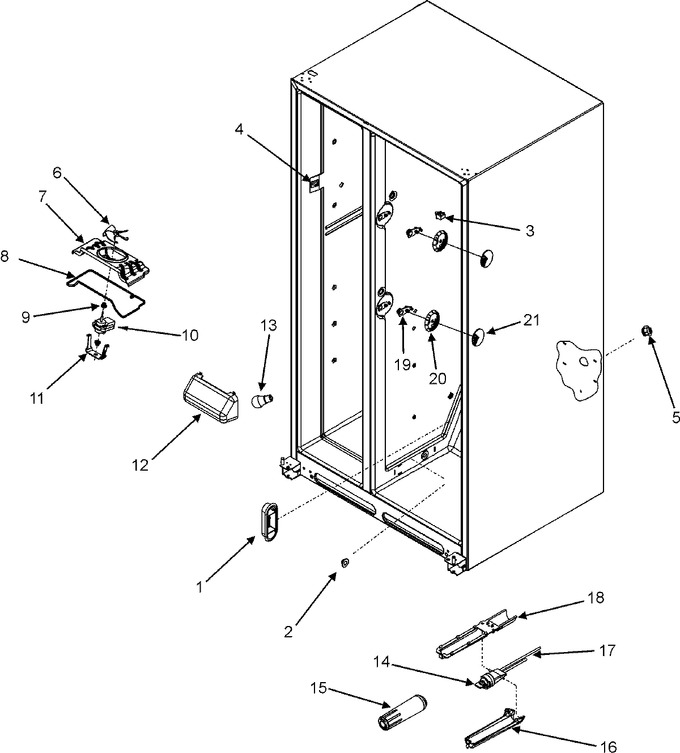

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12634801		Grille, Return Air	10	Appelez-nous	-
2	67002826		Plug, Air Tunnel	10	Appelez-nous	-
3	W11291138		Switch, Ref Light   (Replaces: 12466104)	10		Immediately	$ 33.00
4	W11396033		Switch, Light   (Replaces: 12466103)	10		Immediately	$ 33.57
5	W11447232		Socket, Light   (Replaces: 67005016)	10		Immediately	$ 11.89
6	WP2169142		Fan, Evaporator   (Replaces: 12217201)	10		Immediately	$ 39.07
7	67004253		Shroud, Evap	10	Appelez-nous	-
8	67001508		Gasket	10	Appelez-nous	-
9	WP67002780		Grommet, Fan Motor (blk)   (Replaces: 67002780)	10			$ 7.03
10	WP67005023		Motor, Evap Fan   (Replaces: 67005023)	10			$ 281.12
11	WP67005633		Clip   (Replaces: 67003083)	10			$ 6.89
12	67001507		Shield, Crisper Light	10	Appelez-nous	-
13	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 10.58
14	67003146		Plug, Bypass	10	Appelez-nous	-
15	67003640		Filter, Water	10	Appelez-nous	-
16	WP12568001		Cover, Filter   (Replaces: 12568001)	10		Immediately	$ 78.08
17	67004843		Head, Water Filter	10	Appelez-nous	-
18	12688503		Plate, Filter Backing	10			$ 6.95
19	67002827		Clip, Chiller Control	10			$ 7.47
20	67002225		Control, Chiller	10	Appelez-nous	-
21	67004525		Grille, Chiller Cont-ja	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
