SELECT A DIAGRAM

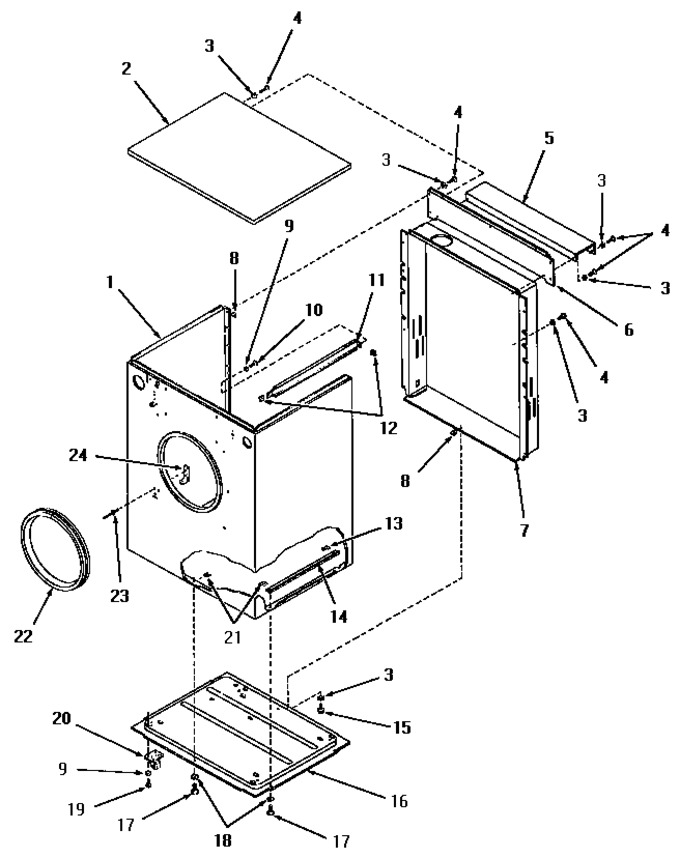

01 - Cabinet And Base


02 - Control Panel And Controls


03 - Fan Assy, Drum And Lint Screen


04 - Heater Element And Housing


05 - Loading Door And Door Safety Switch


06 - Motor, Idler Pulley And Drum Belt


07 - Power Cord, Wire Harness And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M540231A		Cabinet Assembly, Avocado		Appelez-nous	-
1	M540231W		Cabinet Assembly, White		Appelez-nous	-
1	M540231H		Cabinet Assembly, Harvest Gold		Appelez-nous	-
2	M540066A		Cabinet Top, Avocado		Appelez-nous	-
2	M540066H		Cabinet Top, Harvest Gold		Appelez-nous	-
2	M540066W		Cabinet Top, White7)		Appelez-nous	-
3	Y20278		Lockwasher		Appelez-nous	-
4	M540004		Screw		Appelez-nous	-
5	M540179H		Deflector, Harvest Gold		Appelez-nous	-
5	M540179W		Deflector, White		Appelez-nous	-
5	M540179A		Deflector, Avocado		Appelez-nous	-
6	M540178W		Rear Cover, White		Appelez-nous	-
6	M540178A		Rear Cover, Avocado		Appelez-nous	-
6	M540178H		Rear Cover, Harvest Gold		Appelez-nous	-
7	M540176A		Rear Panel, Avocado		Appelez-nous	-
7	M540176W		Rear Panel, White		Appelez-nous	-
7	M540176H		Rear Panel, Harvest Gold		Appelez-nous	-
8	54038		Nut,speed U-type		Appelez-nous	-
9	03815		Lockwasher,no.10 Ext Shk				$ 3.34
10	M540011		Screw		Appelez-nous	-
11	M540018		Brace		Appelez-nous	-
12	M540009		Speed Nut		Appelez-nous	-
13	M540033		Speed Nut		Appelez-nous	-
14	M540034		Support		Appelez-nous	-
15	52150		Screw, Thermostat		Appelez-nous	-
16	M540106		Base		Appelez-nous	-
17	M540026		Hex Head Screw		Appelez-nous	-
18	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
19	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)			Immediately	$ 6.26
20	M540226		Caster		Appelez-nous	-
21	M540033		Speed Nut		Appelez-nous	-
22	M540042		Seal,door Xreplace		Appelez-nous	-
23	M540117		Pop Rivet		Appelez-nous	-
24	M540078		Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
