SELECT A DIAGRAM

Diagram for 01 - Cabinet And Base
01 - Cabinet And Base

Diagram for 02 - Control Panel And Controls
02 - Control Panel And Controls

Diagram for 03 - Fan Assy, Drum And Lint Screen
03 - Fan Assy, Drum And Lint Screen

Diagram for 04 - Heater Element And Housing
04 - Heater Element And Housing

Diagram for 05 - Loading Door And Door Safety Switch
05 - Loading Door And Door Safety Switch

Diagram for 06 - Motor, Idler Pulley And Drum Belt
06 - Motor, Idler Pulley And Drum Belt

Diagram for 07 - Power Cord, Wire Harness And Terminals
07 - Power Cord, Wire Harness And Terminals


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y00000000 See Note Cabinet Assembly Appelez-nous -
2 M540009 Speed Nut Appelez-nous -
3 M540125 Heater Housing Appelez-nous -
4 M540018 Brace Appelez-nous -
5 M540203 Insulator Appelez-nous -
6 03673 Nut Appelez-nous -
7 20492 Washer Appelez-nous -
8 Y00000000 See Note Rear Cover Appelez-nous -
9 Y20278 Lockwasher Appelez-nous -
10 M540004 Screw Appelez-nous -
11 M540202 Insulator Appelez-nous -
12 M540084 Support,bearing Xreplace Appelez-nous -
13 M540127 Element Appelez-nous -
14 M540201 Bolt Appelez-nous -
15 52150 Screw, Thermostat Appelez-nous -
16 M540104 Thermostat Xreplace Appelez-nous -
17 M540200 Support Appelez-nous -
18 M540199 Insulator Appelez-nous -
19 M540040 Brace Appelez-nous -
20 Y00000000 See Note Base Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

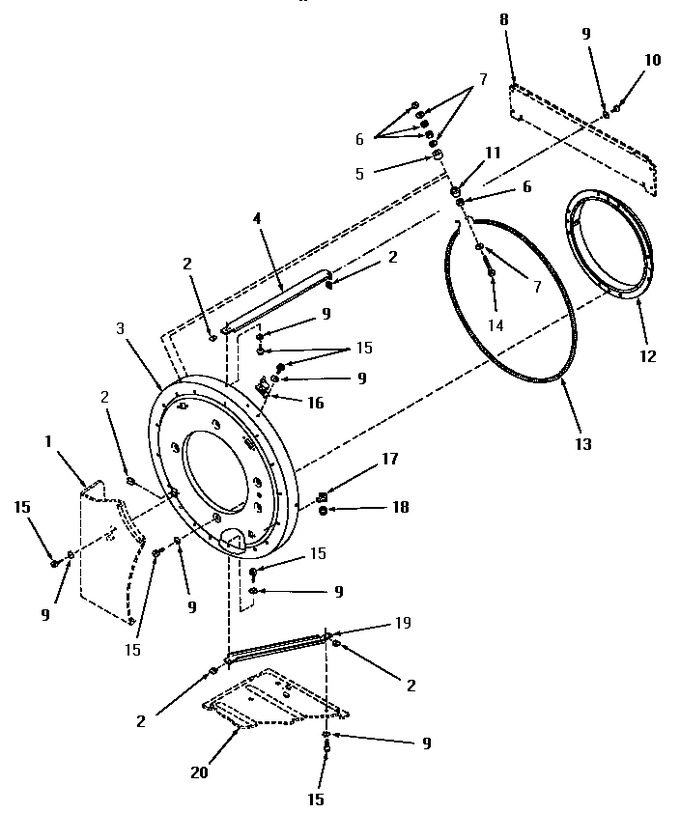

Diagram for HZ1070
