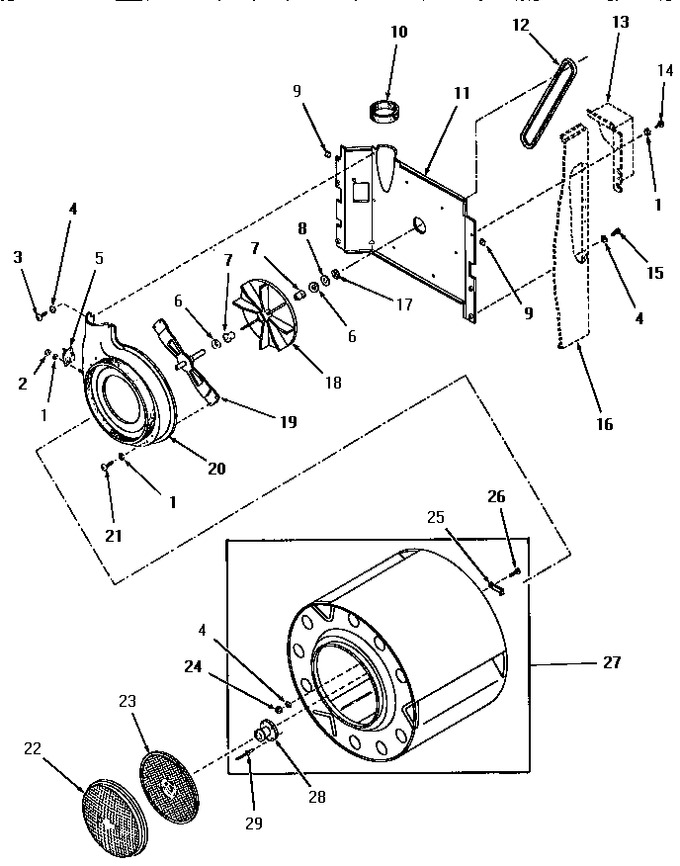

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y20278 | Lockwasher |
|
- | |||||
| 2 | M540064 | Nut |
|
- | |||||
| 3 | M540007 | Screw |
|
- | |||||
| 4 | 03815 | Lockwasher,no.10 Ext Shk |
|
$ 3.34 | |||||
| 5 | M540095 | Thermostat Xreplace |
|
- | |||||
| 6 | M540088 | Washer |
|
- | |||||
| 7 | M540089 | Bearing |
|
- | |||||
| 8 | M540092 | Washer |
|
- | |||||
| 9 | 54038 | Nut,speed U-type |
|
- | |||||
| 10 | M540141 | Felt Seal |
|
- | |||||
| 11 | M540091 | Fan Support |
|
- | |||||
| 12 | M540094 | Belt Xreplace |
|
- | |||||
| 13 | Y00000000 | See Note Rear Panel |
|
- | |||||
| 14 | M540004 | Screw |
|
- | |||||
| 15 | M540011 | Screw |
|
- | |||||
| 16 | Y00000000 | See Note Cabinet Assembly |
|
- | |||||
| 17 | WP23748 | Ring, Retaining (Replaces: 23748) |
|
Immediately | $ 10.75 | ||||
| 18 | M540090 | Assy,fan Xreplace |
|
- | |||||
| 19 | M540087 | Spindle,fan Xreplace |
|
- | |||||
| 20 | M540230 | Fan Housing |
|
- | |||||
| 21 | M540212 | Screw |
|
- | |||||
| 22 | M540101 | Housing,lint Screen Xreplace |
|
- | |||||
| 23 | M540196 | Screen,lint Xreplace |
|
- | |||||
| 24 | 03673 | Nut |
|
- | |||||
| 25 | M540098 | Ground Strap |
|
- | |||||
| 26 | 20267 | Screw,10-24 X 3/8 Round |
|
- | |||||
| 27 | M540159 | Drum Assembly |
|
- | |||||
| 28 | M540166 | Assy,bearing Xreplace |
|
- | |||||
| 29 | M540117 | Pop Rivet |
|
- |
