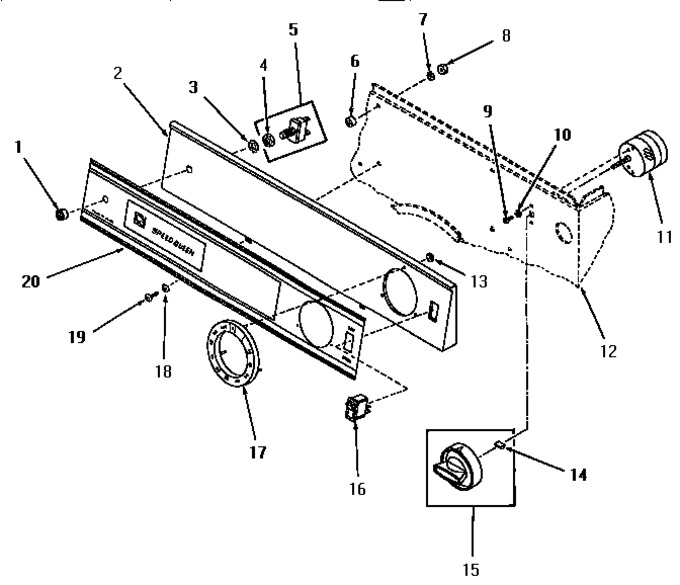

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23406 | Knurled Nut |
|
- | |||||
| 2 | M540054H | Control Panel, Harvest Gold |
|
- | |||||
| 2 | M540054A | Control Panel, Avocado |
|
- | |||||
| 2 | M540054W | Control Panel, White |
|
- | |||||
| 3 | 25820 | Lockwasher,1/2 Int Shk |
|
- | |||||
| 4 | Sub. To D513506 | Nut,hex 15/32-32 (Replaces: 52947) |
|
- | |||||
| 5 | 53563 | Switch,door Release |
|
- | |||||
| 6 | M540055 | Spacer |
|
- | |||||
| 7 | 03815 | Lockwasher,no.10 Ext Shk |
|
$ 3.34 | |||||
| 8 | M540185 | Nut |
|
- | |||||
| 9 | Y02728 | Screw |
|
- | |||||
| 10 | M540191 | Lockwasher |
|
- | |||||
| 11 | M540242 | Timer Xreplace |
|
- | |||||
| 12 | Y00000000 | See Note Cabinet Assembly |
|
- | |||||
| 13 | M540056 | Push Nut |
|
- | |||||
| 14 | 10139 | Clip |
|
$ 15.48 | |||||
| 15 | M540213 | Knob,timer Xreplace |
|
- | |||||
| 16 | M540258 | Switch Xreplace |
|
- | |||||
| 17 | M540170 | Dial,timer Xreplace |
|
- | |||||
| 18 | Y20278 | Lockwasher |
|
- | |||||
| 19 | M540004 | Screw |
|
- | |||||
| 20 | M540192 | Decal |
|
- | |||||
| NOTE: | Note: Individual Wires Not Available Separately. Order Complete Wire Harness. |
|
- |
