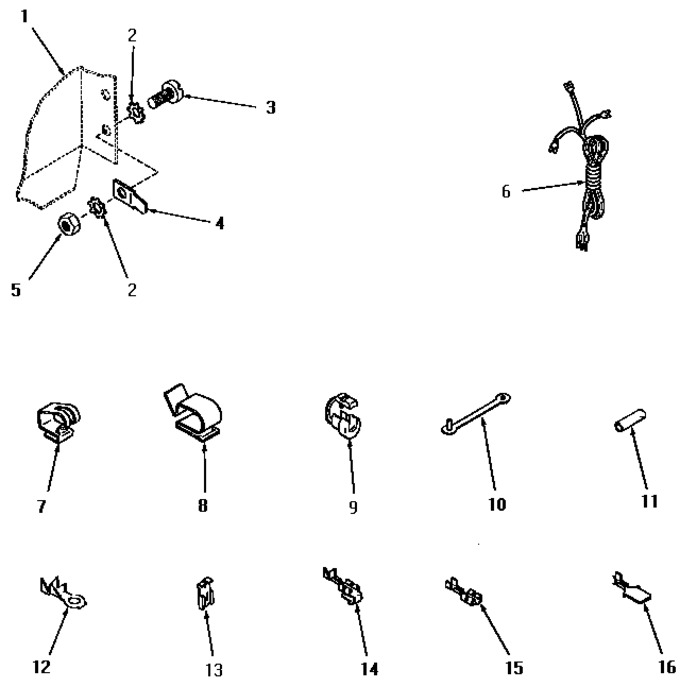

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y00000000 | See Note Cabinet Assembly |
|
- | |||||
| 2 | 03815 | Lockwasher,no.10 Ext Shk |
|
$ 3.34 | |||||
| 3 | 20267 | Screw,10-24 X 3/8 Round |
|
- | |||||
| 4 | M540206 | Ground Lug |
|
- | |||||
| 5 | 03673 | Nut |
|
- | |||||
| 6 | M540241 | Power Cord |
|
- | |||||
| 7 | M540207 | Wire Clip |
|
- | |||||
| 8 | 21036 | Clip,cable |
|
$ 62.49 | |||||
| 9 | Sub. To D510402P | Relief,strain (Replaces: 52113) |
|
- | |||||
| 10 | 22837 | Strap,wire |
|
- | |||||
| 11 | Y21365 | Insulator Sleeve |
|
- | |||||
| 12 | 00110 | Terminal,ring-10 Stud |
|
$ 9.23 | |||||
| 13 | Y00120 | Terminal,flag-1/4 Fema |
|
- | |||||
| 14 | Y00114 | Terminal,spade-1/4 Fem |
|
- | |||||
| 15 | Y00119 | Spade Terminal(18 Gauge) |
|
- | |||||
| 16 | 00118 | Terminal |
|
- | |||||
| NI | M540123 | Complete Wire Harness |
|
- |
