SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel And Controls


03 - Fan Assy, Drum And Lint Screen


04 - Heater Element And Housing

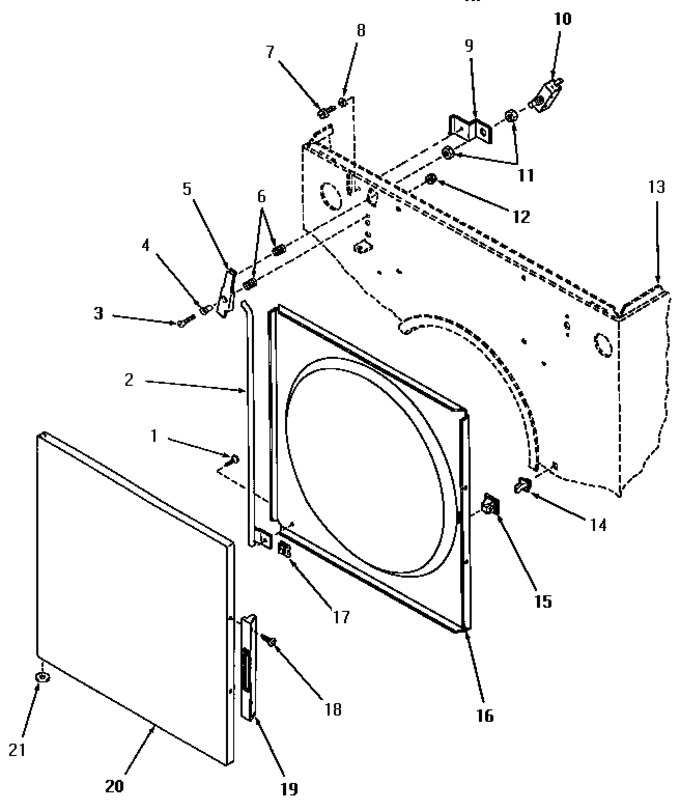

05 - Loading Door And Door Safety Switch


06 - Motor, Idler Pulley And Drum Belt


07 - Power Cord, Wire Harness And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M540004		Screw		Appelez-nous	-
2	M540044		Spindle		Appelez-nous	-
3	M540122		Pivot Screw		Appelez-nous	-
4	M540061		Pivot		Appelez-nous	-
5	M540062		Actuator		Appelez-nous	-
6	53267		Spring		Appelez-nous	-
7	52150		Screw, Thermostat		Appelez-nous	-
8	Y20278		Lockwasher		Appelez-nous	-
9	M540158		Bracket		Appelez-nous	-
10	10484		Switch			Immediately	$ 17.14
11	Y0052975		Cover, Control		Appelez-nous	-
12	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
13	Y00000000		See Note Cabinet Assembly		Appelez-nous	-
14	LA-1003		Strike, Door (metal)   (Replaces: 54661)			Immediately	$ 24.51
15	5366021400		Catch,door Xreplace   (Replaces: M540216)			Immediately	$ 55.99
16	M540048H		Door Liner, Harvest Gold		Appelez-nous	-
16	M540048W		Door Liner, White		Appelez-nous	-
16	M540048A		Door Liner, Avocado		Appelez-nous	-
17	M540009		Speed Nut		Appelez-nous	-
18	M540004		Screw		Appelez-nous	-
19	M540047		Handle,door Xreplace		Appelez-nous	-
20	M540046A		Door Panel, Avocado		Appelez-nous	-
20	M540046H		Door Panel, Harvest Gold		Appelez-nous	-
20	M540046W		Door Panel, White		Appelez-nous	-
21	M540045		Washer		Appelez-nous	-
