Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 54415P Lever,idler   (Replaces: 54415) Appelez-nous -
2 52567 Bolt,shoulder Appelez-nous -
3 54410 Lever,idler Appelez-nous -
4 M540112 Motor Xreplace Appelez-nous -
5 51789 Replaced By 58047 Appelez-nous -
6 53213 Switch Appelez-nous -
7 WPW10139757 Nut, Hex Jam 1/4-20l   (Replaces: 52566) Special Order $ 7.16

8 M540111 Motor Mount Appelez-nous -
9 20279 Washer,13/32idx13/16od Special Order $ 2.85

10 WP62739 Nut,hex 3/8-16   (Replaces: 20274) Special Order $ 6.85

11 20277 Lockwasher,3/8 Std X 3 Appelez-nous -
12 Y00000000 See Note Base Appelez-nous -
13 52323 Spring Appelez-nous -
14 M540121 Belt Xreplace Appelez-nous -
15 WPY54414 Assembly, Wheel & Bearing   (Replaces: Y54414) In-Stock Immediately $ 19.11

16 54411 Shaft,idler Lever Appelez-nous -
17 WP23748 Ring, Retaining   (Replaces: 23748) In-Stock Immediately $ 10.75


    View Diagram in Separate Window     Print Icon   Print Part List

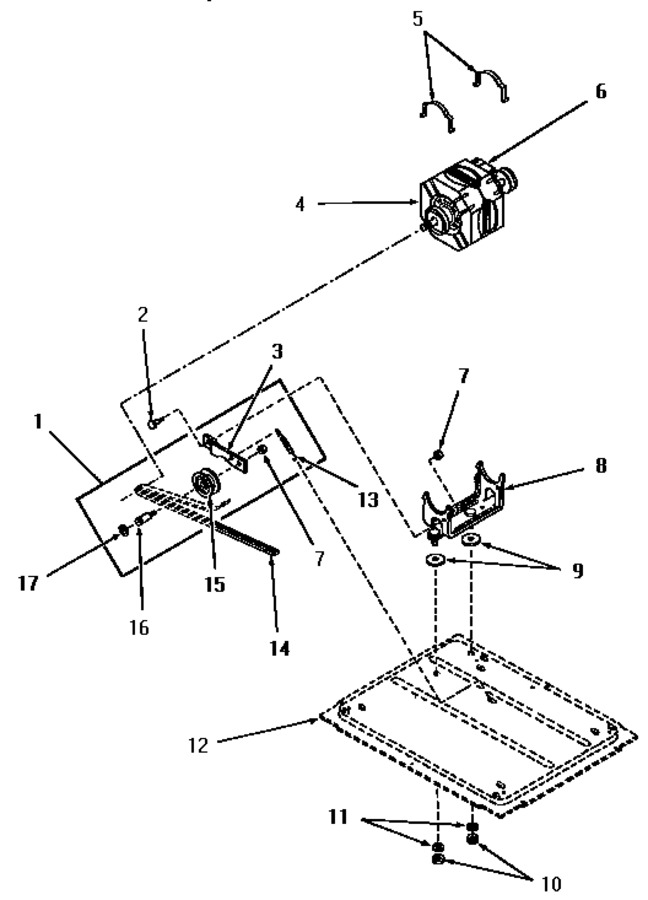

Diagram for HZ1070
