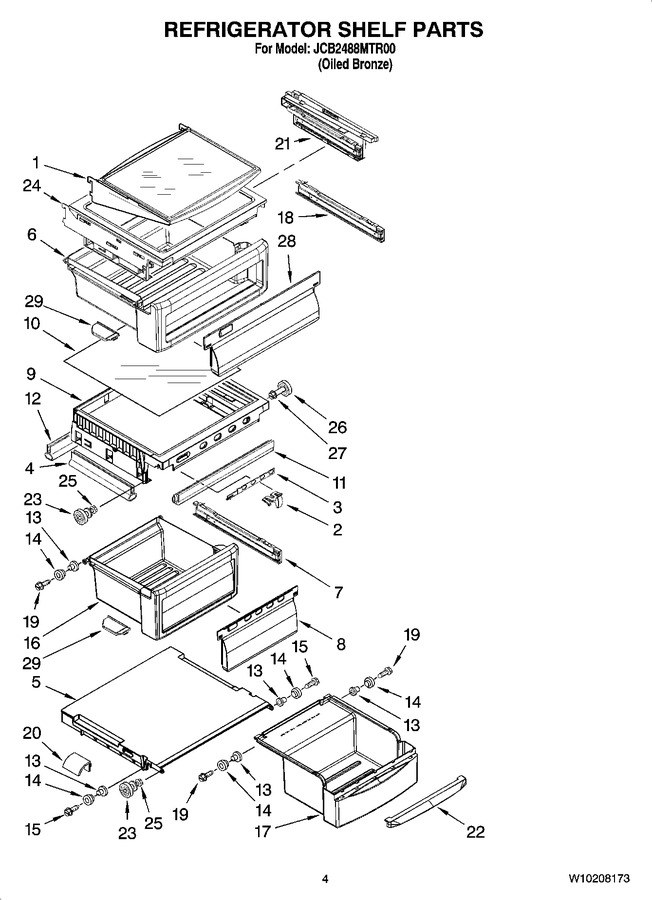

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10163058		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	2301025		Button, Humidity				$ 74.39
3	2301026		Slide, Humidity		Appelez-nous	-
4	2301117		Gasket, Side (2)				$ 143.37
5	WPW10270150		Cover, Meat Pan (includes Items 13, 14, 15 & 20)   (Replaces: 2203027)				$ 308.21
6	W10163047		Snack Pan (includes 30 & 31)				$ 55.38
7	2301548		Glide Assembly, Crisper Pan (right Side)				$ 224.83
7	2301549		Glide Assembly, Crisper Pan (left Side)				$ 123.81
8	2301001		Window, Crisper Pan				$ 75.59
9	W10163043		Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14 & 19)		Appelez-nous	-
10	W10916292		Glass, Cover   (Replaces: W10163039)				$ 179.28
11	WP1125528		Gasket (front)   (Replaces: 2301116)				$ 138.59
12	2301115		Gasket (rear)		Appelez-nous	-
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
15	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 9.74
16	W10916292		Crisper Pan (includes 8, 13 14, 19 & 29)   (Replaces: W10163039)				$ 179.28
17	W10162924		Meat Pan (includes 13, 14, 19 & 22)		Appelez-nous	-
18	2301551		Glide Assembly, Snack Pan (left Side)				$ 239.42
18	2301550		Glide Assembly, Snack Pan (right Side)				$ 150.39
19	WP489261		Screw   (Replaces: 489261)				$ 6.85
20	2223487		Deflector				$ 83.68
21	2301570		Support Assembly (left Side)				$ 125.92
21	2301569		Support Assembly (right Side)				$ 118.73
22	2203031		Handle				$ 67.06
23	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 12.66
24	W10163049		Shelf, Snack Pan		Appelez-nous	-
25	WP3-24004-109		Screw   (Replaces: 3400894)				$ 7.25
26	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 9.32
27	WP3400806		Screw   (Replaces: 8281158)				$ 6.94
28	2301006		Window, Snack Pan				$ 135.77
29	2301017		Cap, Snack Pan (left Side)		Appelez-nous	-
29	2301016		Cap, Snack Pan (right Side)		Appelez-nous	-
