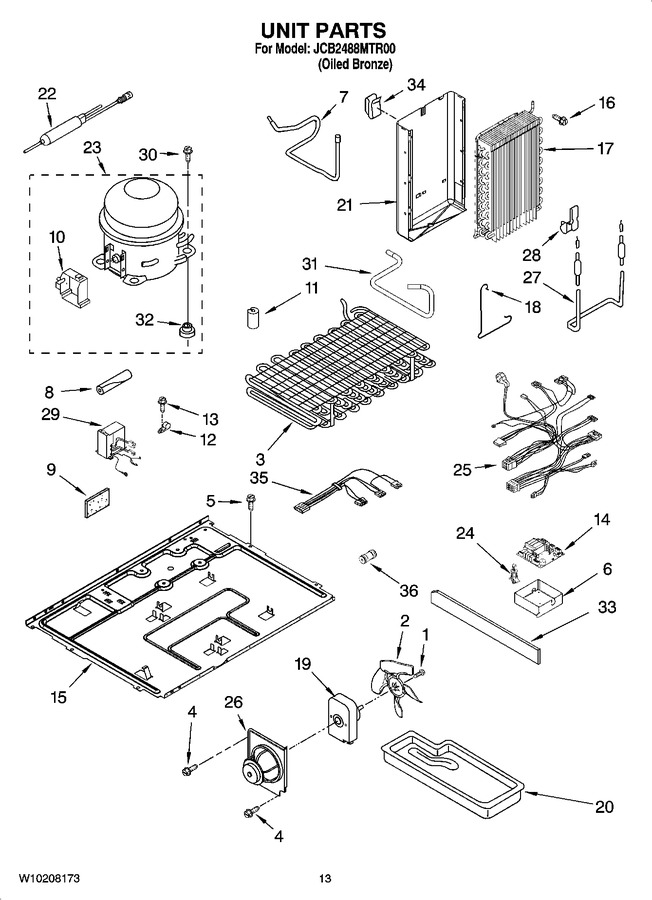

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488234 | Screw (Replaces: 777070) |
|
$ 6.07 | |||||
| 2 | W11458267 | Fan, Blade (Replaces: 2225834) |
|
Immediately | $ 21.59 | ||||
| 3 | W10131059 | Condenser Assembly |
|
- | |||||
| 4 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 5 | 3400524 | Screw (6) |
|
$ 11.39 | |||||
| 6 | 2223703 | Housing, Control Board |
|
$ 75.75 | |||||
| 7 | W10528579 | Tube Suction (Replaces: 2223351) |
|
$ 235.98 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 9 | W11553819 | Insulation-sound (Replaces: 2169104) |
|
Immediately | $ 12.66 | ||||
| 10 | 2215676 | Cover, Terminal |
|
$ 80.88 | |||||
| 11 | W10852725 | Grommet, Condenser (4) (Replaces: 2319835) |
|
$ 6.93 | |||||
| 12 | W11456069 | Clamp, Cable (Replaces: 2185788) |
|
Immediately | $ 19.20 | ||||
| 13 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 14 | W10219463 | Electronic Control (Replaces: W10185291) |
|
$ 291.62 | |||||
| 15 | 2306932 | Baseplate |
|
$ 158.02 | |||||
| 16 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 17 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 326.99 | ||||
| 18 | 2161324 | Clamp |
|
- | |||||
| 19 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 102.56 | ||||
| 20 | 2223398 | Tray, Evaporator |
|
- | |||||
| 21 | 2224022 | Heat Shield |
|
- | |||||
| 22 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 23 | 8201675 | Compressor (includes Items 10 & 32) (Replaces: W10183959) |
|
Immediately | $ 484.49 | ||||
| 24 | 2223800 | Spacer (5) |
|
$ 17.50 | |||||
| 25 | 2187849 | Harness, Main Control |
|
$ 211.12 | |||||
| 26 | 2224024 | Fan, Motor Bracket |
|
$ 56.36 | |||||
| 27 | 2323199 | Heater, Defrost |
|
$ 127.42 | |||||
| 28 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 29 | WPW10154805 | Inverter Box (Replaces: W10154805) |
|
Immediately | $ 340.88 | ||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 6.68 | |||||
| 31 | W10181542 | Tube, Discharge |
|
- | |||||
| 32 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 6.68 | |||||
| 33 | 2223394 | Extension, Air Baffle |
|
- | |||||
| 34 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 35 | 2310119 | Unit Harness |
|
- | |||||
| 36 | WPW10334458 | Connector, Water Tube (Replaces: 2320322) |
|
$ 19.43 | |||||
| SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 19.48 | ||||||
| 978028 | Valve, Access (1/2``) |
|
- | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 117.64 | ||||||
| 978029 | Valve, Access (5/8``) |
|
$ 93.85 |
