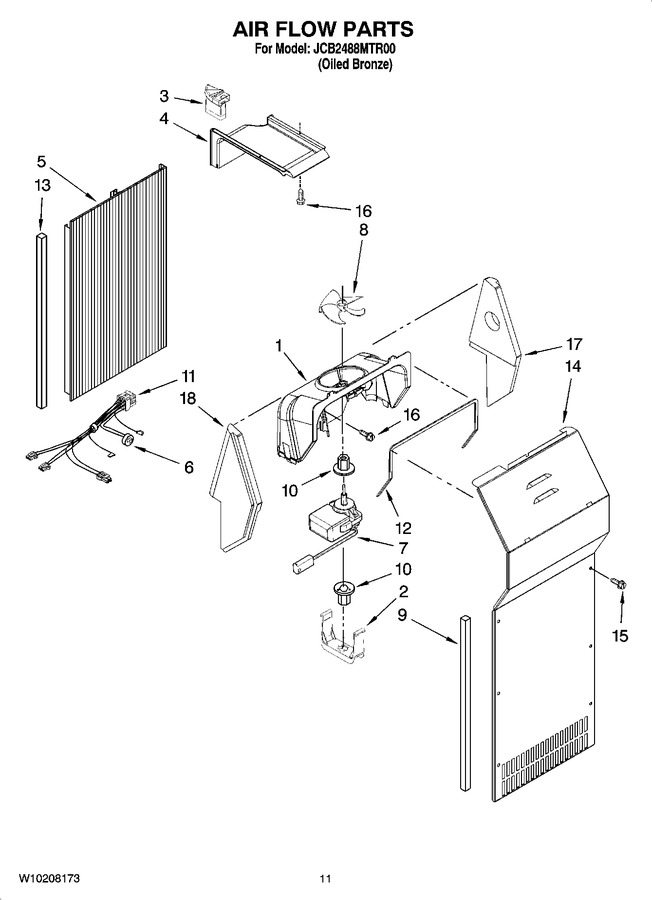

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 100.77
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 136.52
3	2223298		Air Scoop		Appelez-nous	-
4	2223303		Air Duct, Upper				$ 102.31
5	2223297		Air Duct Freezer		Appelez-nous	-
6	WPW10225581		Bi-metal, Defrost   (Replaces: 2321799)			Immediately	$ 45.69
7	2259385		Fan Motor				$ 84.74
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 39.07
9	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 74.52
10	W11669856		Fan Grommet (2)   (Replaces: 2223986)			Immediately	$ 13.65
11	W10129813		Harness, Fan Evaporator (includes 6)		Appelez-nous	-
12	WP2155789		Gasket, Fan Scroll   (Replaces: 2155789)				$ 7.01
13	4388500		Gasket   (Replaces: 2203876)				$ 81.35
14	2223413		Cover, Evaporator (includes 9)		Appelez-nous	-
15	4389654		Screw   (Replaces: 8281159)				$ 12.50
16	WP489478		Screw   (Replaces: 489478)				$ 6.98
17	2223395		Support, R.s		Appelez-nous	-
18	4388358		Support, L.s.   (Replaces: 2203596)				$ 28.04
