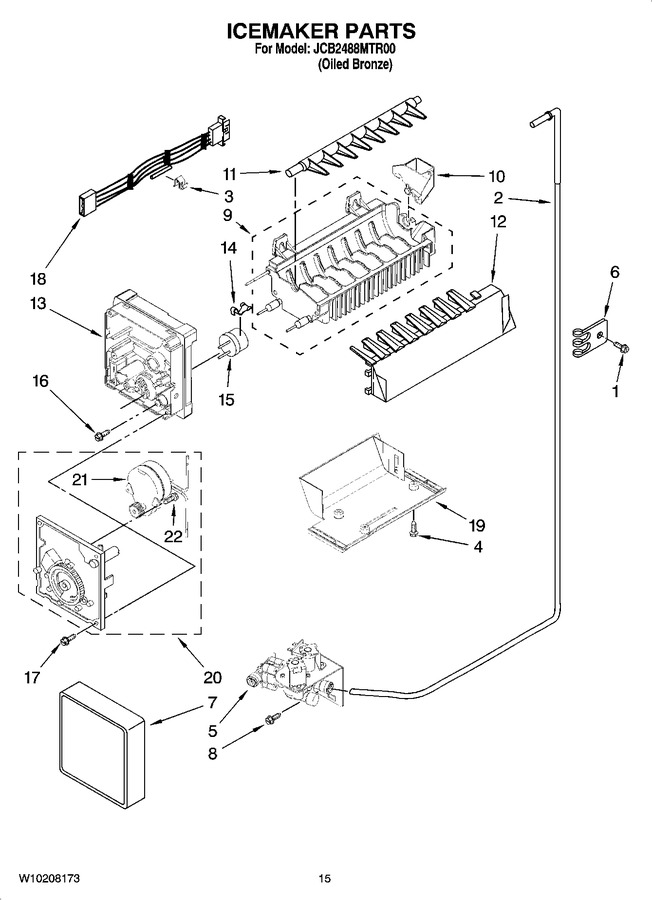

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 2 | 2303216 | Fitting, Water Tube |
|
$ 55.81 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 5 | 2317200 | Water Valve Asm |
|
- | |||||
| 6 | WP488366 | Tube Clip (Replaces: 2208136) |
|
$ 10.06 | |||||
| 7 | WPW10289690 | Cover (Replaces: 2174358) |
|
Immediately | $ 7.56 | ||||
| 8 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 19.04 | |||||
| 9 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 209.84 | |||||
| 10 | WPW10272168 | Cup-water Fill (Replaces: 2304969) |
|
$ 65.56 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 12 | W10297244 | Ice Striper (Replaces: 2198598) |
|
$ 65.83 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 94.11 | |||||
| 14 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 9.95 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 627985) |
|
Immediately | $ 98.26 | ||||
| 16 | 8533917 | Screw |
|
$ 12.03 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 18 | WP2187467 | Harness, Wiring (Replaces: 2187467) |
|
$ 116.04 | |||||
| 19 | 2303583 | Bracket, Ice Maker Mounting |
|
$ 46.76 | |||||
| 20 | 8201515 | Module Assembly (includes Items 21 & 22) (Replaces: 626691) |
|
Immediately | $ 127.48 | ||||
| 21 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 127.48 | ||||
| 22 | 489136 | Screw |
|
$ 9.26 | |||||
| 100 | 2198597 | Icemaker Assembly (Replaces: W10190960) |
|
Immediately | $ 164.09 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | |||||
| 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | ||||||
| 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 44.36 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.26 | ||||||
| 8201806 | Previous Architect Series Handle Kit (stainless Steel) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 10.96 | |||||
| WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 156.56 | |||||
| 72017 | Paint, Touch-up (1/2oz.) (graphite) |
|
Immediately | $ 11.07 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz) (primer, White) |
|
$ 80.69 | ||||||
| 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) |
|
$ 74.08 | ||||||
| W10134625 | Paint, Touch-up (1/2oz.) (apollo Grey) |
|
Immediately | $ 23.81 | |||||
| 8171358 | Paint, Bulk (1 Qt.) (graphite) |
|
- |
