SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts

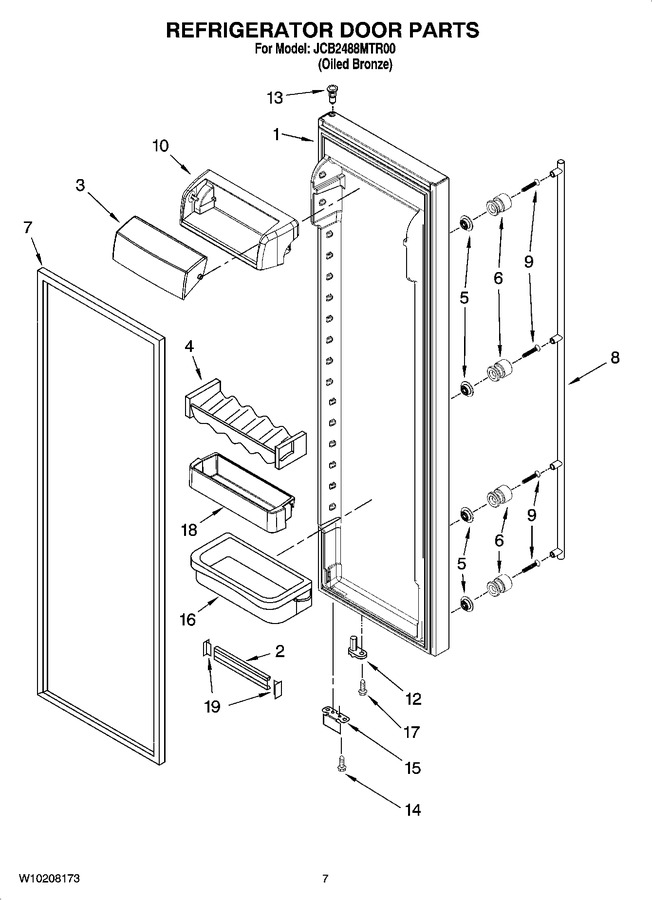

05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10151643		Refrigerator Door (includes 7) (oiled Bronze)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Dairy Door				$ 34.76
4	2223883		Caddy, Can				$ 34.98
5	67005087		Spacer, Hdl (4)		Appelez-nous	-
6	67006109		Mount, Hdl (4)		Appelez-nous	-
7	2306996		Door Gasket, Magnetic (black)   (Replaces: 2223909)				$ 287.23
8	WP12850908		Handle (stainless Steel)   (Replaces: 12850908)				$ 257.68
9	W10160454		Screw, Mount (4)				$ 12.36
10	2223879		Dairy Compartment				$ 40.49
12	2307048		Thimble Cam, Rc		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 6.98
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2306940B		Bracket, Door Stop (black)				$ 33.40
16	WP2223860		Door Bin (3)   (Replaces: 2223860)			Immediately	$ 75.65
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 78.59
19	WP2156006		Plug, Trim   (Replaces: 2156006K)			Immediately	$ 10.96

    View Diagram in Separate Window       Print Part List
