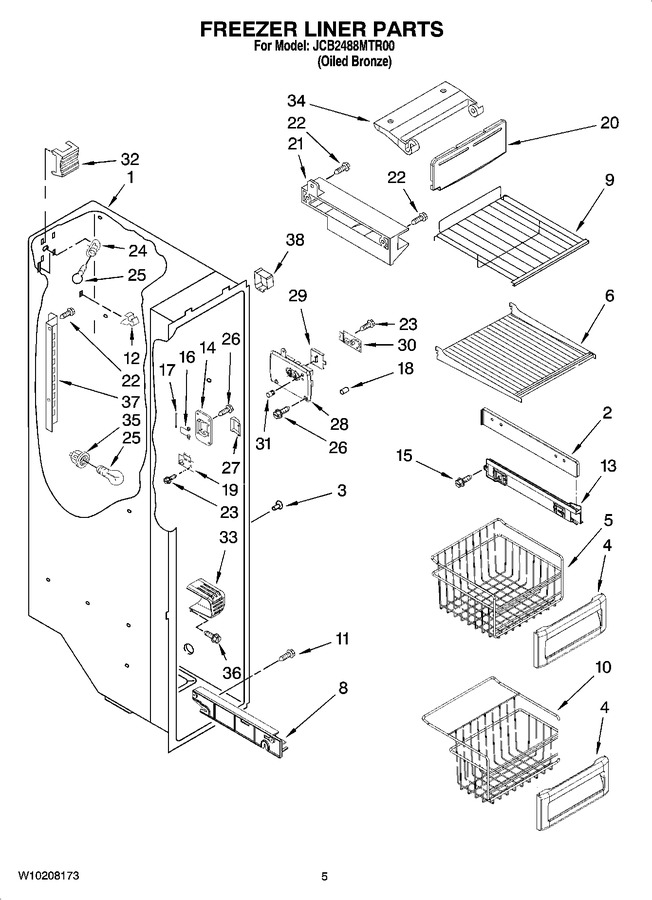

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2223777		Spacer, Slide (2)		Appelez-nous	-
3	WP941839		Hole Plug   (Replaces: 941839)				$ 6.89
4	2224053		Basket, Front				$ 64.68
5	2223811		Basket, Deep (2)		Appelez-nous	-
6	2223500		Shelf Assembly, Cantilever (2)		Appelez-nous	-
8	2223787		Shelf Track (right Side)				$ 40.35
8	2223788		Shelf Track (left Side)				$ 40.68
9	2254615		Shelf, Fixed		Appelez-nous	-
10	2223694		Basket, Lower				$ 146.94
11	W10142289		Screw   (Replaces: 3400893)				$ 8.24
12	2215823		Clip, Air Duct   (Replaces: 842534)				$ 9.38
13	2301545		Glide Assembly, Basket (2) (left Side)				$ 145.88
13	2301544		Glide Assembly, Basket (2) (right Side)		Appelez-nous	-
14	2259487		Cover, Emitter				$ 68.37
15	8534064		Screw		Appelez-nous	-
16	WP2198635		Spring   (Replaces: 2198635)				$ 78.37
17	WP2198634		Pin   (Replaces: 2198634)				$ 15.98
18	2198665		Tube, P.c. Board				$ 21.52
19	W11629974		P.c. Boardemitter   (Replaces: W10193840)			Immediately	$ 360.96
20	WPW10185438		Cover, Ice Maker   (Replaces: W10185438)				$ 77.08
21	2212321		Slide, Ice Maker Mounting (right Side)				$ 67.14
21	2306900		Slide, Ice Maker Mounting (left Side)		Appelez-nous	-
22	WP489478		Screw   (Replaces: 489478)				$ 6.98
23	2006254		Screw   (Replaces: 489214)				$ 11.82
24	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
25	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 10.17
26	WPW10142283		Screw   (Replaces: 8281185)				$ 8.86
27	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 43.44
28	W10173569		Cover, Receiver				$ 66.93
29	2315398		Slide, Ice Maker Shut Off				$ 9.81
30	W11629974		P.c. Board, Receiver   (Replaces: W10193666)			Immediately	$ 360.96
31	WP2198643		Lens   (Replaces: 2198643)				$ 7.36
32	2198589		Light Shield		Appelez-nous	-
33	W11298978		Light Lens   (Replaces: 2212340)				$ 84.49
34	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 6.47
35	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 90.99
36	W10142289		Screw   (Replaces: 3400893)				$ 8.24
37	2223414		Ladder (left Side)		Appelez-nous	-
37	2223415		Ladder (right Side)		Appelez-nous	-
38	2303378		Shield, Wiring				$ 11.88
